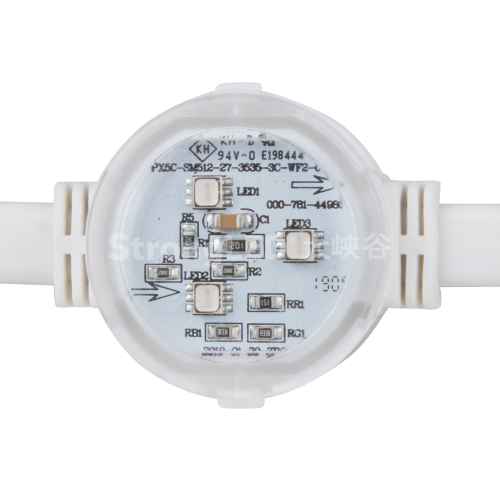

DC24V RGB DMX512 LED Dot Light PX5C

DC24V RGB DMX512 LED Dot Light PX5C

 Features

1. Flexible strands of attractive mid-size, low profile high brightness RGB or Whites LED pixel node lights suitable for applications on building facade mullion intersections for a distinctive lighting decoration or mounted into node array formation to create huge full color graphic display;
2. Cree, Osram or Lumileds LED brand choice provide good color mixed and a wide 110° view angle;
3. Built-in PWM high brightness contrast level control for smooth and consistent color change effect;
4. Precision injection-molded PC housing with clear UV-resist diffuser, weather-sealed with silicon polymer for maximum lifespan;
5. Use standard CAT5 for signal transmission. Customizable pixel node pitch and lead cable length;
6. Easy mounting and installation with stainless steel spring bracket. Single node mounts can be positioned individually to support complex structure geometries;
7. DC12V input. DMX control. Ingress protection at IP66.

Relative products: Led Dot Light, Landscape Lighting Dot Light, Low Power LED Dot Light, Addressable LED Dot Light, Outdoor Lighting Dot Light

 Parameters

■ LED source:CREE/OSRAM SMD
■ Power Rating: 0.9W, Input Voltage:DC24V
■ CCT:3000K, ON/OFF FUNCTION
■ LEDs:3 LEDs
■ Beam Angle:≥110°
■ Dimension:41.5*34.5*16.5mm
■ Protection: IP 66
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): PC diffuser
■ Cable length: 500mm with waterproof connectors
■ Cable (1 in/1 out)
■ Pixels:1
