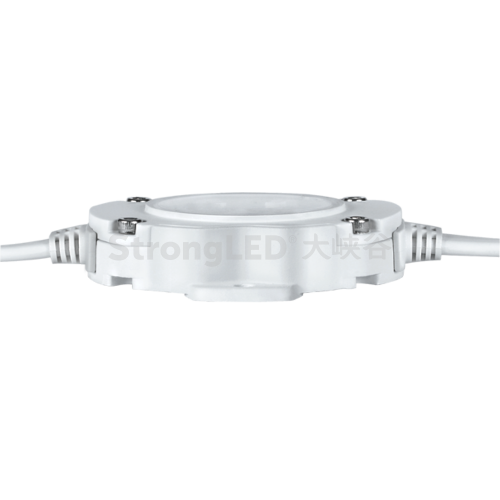

RGBW Addressable Facade Lighting LED Dot Light DS1A

RGB+W Addressable Facade Lighting LED Dot Light DS1A

 Features

■ Flexible strands of attractive mid-size, low profile high brightness RGB, RGBW or Whites LED pixel node lights suitable for applications on building facade mullion intersections for a distinctive lighting decoration or mounted into node array formation to create huge full color graphic display;

■ Precision injection-molded housing with clear or frosted flat or dome shaped UV-resist PC covers; weather- sealed for maximum life span and rated at IP66;

■ Variety of clear or frosted; flat or dome UV-resist PC covers for flexible viewing effects and applications;
■ DC24V input. DMX control, constant current driver and PWM high contrast control for excellent and consistent color effects and mix;
■ Single node mounts can be positioned individually to support complex structure geometries. Various mounting methods available;
■ SiDMX control with auto-address setting and RDM features.

Led Dot Light, Landscape Lighting Dot Light, Low Power LED Dot Light, Addressable LED Dot Light, Outdoor Lighting Dot Light

 Parameters

■ LED source:CREE/OSRAM/LUMILEDS
■ Power Rating: 4.32W, Input Voltage:DC24V
■ CCT:RGBW, DMX 512
■ LEDs:18 LEDs（RGB+6000K+3000K）
■ Beam Angle:≥110°
■ Dimension:66.5*65.7*16mm（flat）/66.5*65.7*37.5mm（convex）
■ Protection: IP 66
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum + PMMA diffuser
■ Cable length: 500mm with waterproof connectors
■ Cable (1 in/1 out)
■ Pixels:2
