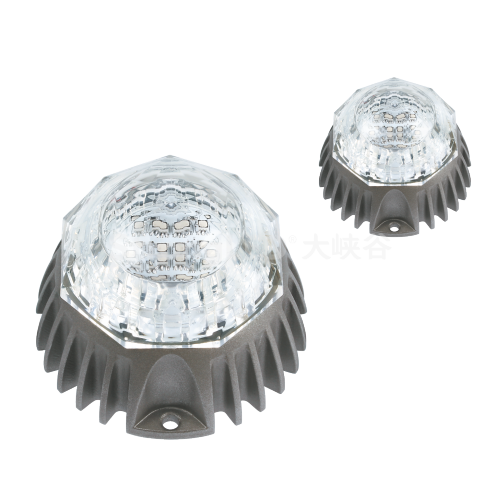

DC24V RGB DMX512 LED Dot Light SP3B

DC24V RGB DMX512 LED Dot Light SP3B

 Features

■ Small-size, low profile high brightness LED pixel node light. Suitable for application on building facade mullion intersections for a distinctive lighting decoration or mounted into a node array formation to create huge colorful graphic display.

■ Applied for outdoor project, weather-proof sealed with IP66 rating. Built-in protection against static discharges.

■ Die cast aluminum alloy body with clear prismatic diffuser. Easy and flexible mounting methods and installation.

■ Outdoor, weather-proof sealed with IP66 rating. Build-in protection against static discharges.

■ Injection molded ,olded aluminum body with clear prismatic diffuser. Easy and flexible mounting methods and installation.

■ Choice of Cree, Osram, Lumiled LED brand. Excellent  and consistent color mixing.

■ Input voltage DC24V. Constant current drive, built-in PWM high brightness contrast level control for smooth and consistent color change effect.

■ Customized housing color available for perfect integration to architectural intent.

Led Dot Light, Landscape Lighting Dot Light, Low Power LED Dot Light, Addressable LED Dot Light, Outdoor Lighting Dot Light

 Parameters

■ LED source:CREE/OSRAM/LUMILEDS SMD
■ Power Rating: 2.16W, Input Voltage:DC24V
■ CCT:RGB, DMX512
■ LEDs:9 LEDs
■ Beam Angle:≥80°
■ Dimension:φ70*50.77mm(prism cover)φ70*43mm(cambered cover)
■ Protection: IP 66
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum(SP3B)/PPO(SP3) + PMMA diffuser(cambered/prism cover)
■ Cable length: 500mm with waterproof connectors
■ Cable (1 in/1 out)
■ Pixels:1
