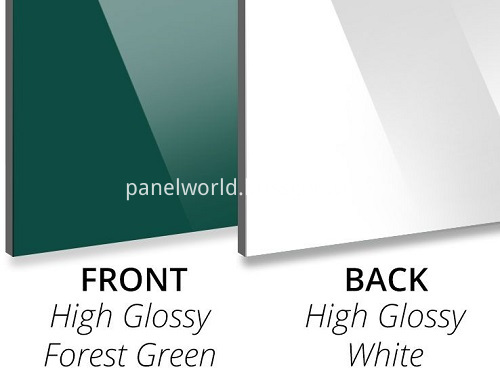

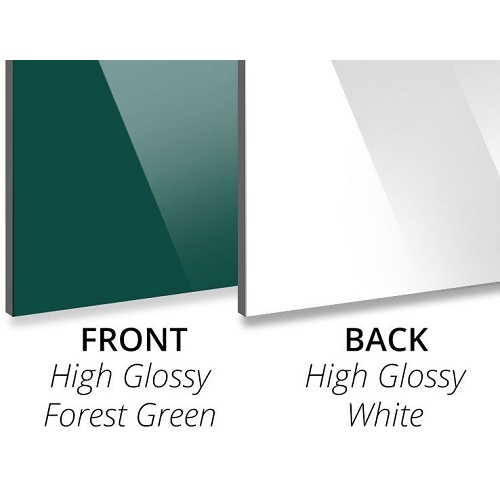

Aluminum Composite Panel 3mm Forest Green PE Core
- Payment Type:
- T/T
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 2 Ton
- Min. Order:
- 2 Ton
- Delivery Time:
- 20-35 Days
- Transportation:
- Ocean
- Port:
- Shanghai Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 8000sheet/ sheets per Month |
| Supply Ability: | 6000 sheet per Month |
| Payment Type: | T/T |
| Incoterm: | FOB,CIF,EXW |
| Transportation: | Ocean |
| Port: | Shanghai Port |
| Reference | Size | Skin | Foldable | Digital Printable |
| BC-38W-24 | 2440 X 1220mm X 3mm | 0.21mm | Yes | No |
| BC-38W-30 | 3050 X 1500mm X 3mm | 0.21mm | Yes | No |
CMD Aluminum Composite Panel
The new-age material of Aluminum Composite Panel or ACP sheets that’s used for building front elevation (facades), interiors, signage, modular kitchen and many more.
It is available in a wide range of colors and textures like wood, stone, sand, 3D etc.
And it can be bent, folded and turned into shapes that can’t be achieved by any other material. Therefore, CMD aluminum Composite Panel allows more design liberty and is thus a designer’s delight.
Construction
The top and the bottom layers of ACP cladding panels are of coated aluminum sheets and the core sandwiched between them is polyethylene.
Protection Film
PVDF/Polyester Resin Based Coating
Primer Coating (used in case of PVDF only)
aluminum Coil
Adhesive Film (Polyolefin)
Polyethylene Core (LDPE)
Adhesive Film (Polyolefin)
aluminum Coil
Service Coating (Anti-corrosive)
Why Choose CMD ACP Sheet?
This modern material comes with a host of practical and technical advantages over traditional and other materials. It’s lightweight. It’s delightfully flexible and easy to work with.
It’s easy to install and can be installed real fast. It’s durable, easy to maintain and cost-effective. And it offers a wider variety of colors and textures.
No material is as flexible as Aluminum Composite Panel, and it can give birth to designs that is either too difficult or impossible with other materials.
|
Features |
Applicable to ACP sheet |
Applicable to HPL |
Applicable to Stone |
|
Chemical resistant |
Yes |
No |
No |
|
Easy to Install |
Yes |
Yes |
Yes |
|
UV Resistant |
Yes |
No |
No |
|
Easily bent, folded and turned |
Yes |
No |
Yes |
|
Recyclable |
Yes |
No |
No |
|
Borer, termite and fungi resistant |
Yes |
No |
Yes |
CMD ACP sheet thickness or make use for
ACP sheet comes in 2mm, 3mm and 4mm with the aluminum coil thicknesses varying from 0.1mm to 0.3mm. Based on this, they are divided into different grades:
4mm panel with 0.21mm aluminum coil thickness, meant for exterior applications.
3mm panel with 0.21mm aluminum coil thickness, meant for interior applications.
2mm panel with 0.1mm aluminum coil thickness, meant for interior applications.
CMD ACP Sheet Advantages
It can bend, fold and turn easily
No crack risk
Flatness
Available in a wide range of colors and finishes like wood, stone, mirror,
sand, and 3D
Lightweight
Provide insulation to buildings
Borer, termite, and fungi resistant
Available in 2mm, 3mm, and 4mm thicknesses
Can be made fire retardant
Have antimicrobial properties
UV ray resistant
Environment-friendly as it is lead-free material
Fully recyclable
Withstands extreme weather conditions
Easy to clean
Easy to perforate
CMD ACP Sheet Applications
Exterior –facade, canopy, overhang, and more.
Interior – wall covering, false ceiling, cupboards, wardrobes, modular kitchens, table tops, column covers and more.
Corporate Identity Design – Signage, kiosks, totems, POP, fascia, etc.
Besides regular series that comprises solid and metallic colors, CMD has an ever-growing palette of special series comprising Sand, Rustic, Timber et al.
