Pneumatic Screwdriver Robot Automatic Screw Lock Machine

$5600.00 - $16800.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai, Qingdao, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000SETS
Supply Ability:	1000 Sets
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,DDP,DDU,Express Delivery
Certificate:	ISO9001, ISO14001, CE
HS Code:	84798900
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai,Qingdao,Shenzhen

Product Description

Fully Automatic Locking Screw Machine, also known as Automatic Screw Locking Machine, Automatic Tightening Screw Machine, Automatic Screw Driving Machine, Automatic Screw Fastening Machine, Self-locking Screw Machine etc.
According to the screw specification, it can be designed as , Air Suction Screw Locking Machine.
According to the coordinate axis, the machine can be divided into Three Coordinate Automatic Locking Screw Machine, 4 Axis Automatic Screw Lock machine, 6 Axis Pneumatic Screw Machine Automatic, and Multi-axis Automatic Screw Feeding and Tightening Machine, Multi Spindle Screw Tightening Machine,
According to the structure, it is known as hand held locking screw machine,Online Robot Screw Locking Machine, Automatic Robot Screw Tightening Machine, multi-station turntable screw locking machine, Robot Automatic Screw Locking Machine etc.

All of the above machine is customized designed and produced by the tighten request.

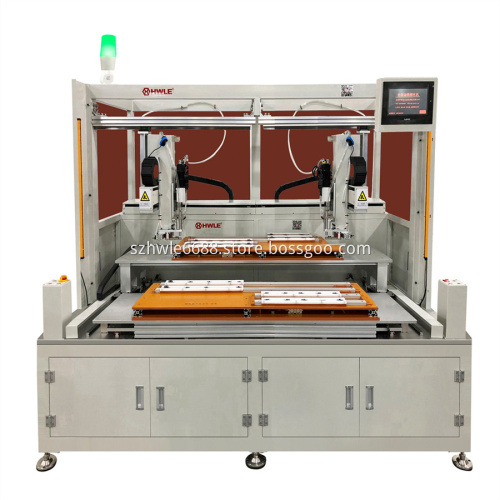

6 Axis Cantilever Automatic Screw Locking Machine

The Parameters Of Servo And Electric Automatic Screw Locking Machine
Applicable specifications: M1.0-20mm, L2.0-90mm
Tightening: Screws, nuts, sleeves, rivets, plugs, gaskets, washers
Working pressure: 5.5±0.5kgf/cm2
Torque upper limit: 500kgf.cm (50N.m)
Running accuracy: 1000mm/sec ±0.02mm/axis
Control method: PLC+HMI Industrial computer +Display
Motion module: Servo motor +screw slide; linear motor+linear slide
Programming: Independent development of English operating software
Feeding method: Pneumatic blowing, pneumatic suction, blowing and suction
Stuck rate: ≤0.1%
Tightening speed: 1.5-2.5/screw
Screwdriver: Servo screwdriver, electric screwdriver
Effective stroke: According to product customization
Integrated function: Six axis moving+Torque detection + depth control + MES function Sliding teeth + floating lock + leak lock alarm and prompt.
automatic screwdriver

The Parameters Of Servo Automatic Screw Locking Machine
Applicable specifications: M1.0-20mm, L2.0-90mm
Tightening: Screws, nuts, sleeves, rivets, plugs, gaskets, washers
Working pressure: 5.5±0.5kgf/cm2
Torque upper limit: 500kgf.cm (50N.m)
Running accuracy: 1000mm/sec ±0.02mm/axis
Control method: PLC+HMI Industrial computer +Display
Motion module: Servo motor +screw slide; linear motor+linear slide
Programming: Independent development of English operating software
Feeding method: Pneumatic blowing, pneumatic suction, blowing and suction
Stuck rate: ≤0.1%
Tightening speed: 1.5-2.5/screw
Screwdriver: Servo screwdriver, electric screwdriver
Effective stroke: According to product customization
Integrated function: Six axis moving+Torque detection + depth control + MES function Sliding teeth + floating lock + leak lock alarm and prompt.

6-axis cantilever screw lock machine

The machine can be equipped with servo screwdriver to perform tasks through servo motors, PLC, and drives, and can run complex algorithms. The torque control is more precise, the torque value can be given in real time, and the action is executed according to the torque reference value to complete the high standard and difficult lock work.
The controller interface displays the main data of the tightening process in real time: actual torque value, rotation angle value, process time, eligibility etc.; displayed and set by the touch screen.
Screw For Screw Locking Machine

The automatic locking screw machine can be used in the following industries
1. Communication industry: mobile phones, cameras, hard disks, keyboards, printers, computers, DVDs, home appliances, plastics, toys, electrical appliances, communication equipment, toys, electronic processing and assembly, etc.
2. Automobile industry: new energy battery tray, rearview mirror.
3. Screw assembly of electric tools, garden tools, motors and other parts.
4. Lighting fixtures

6 Axis Workpiece
