Six Axis Cantilever Screw Locking Machine

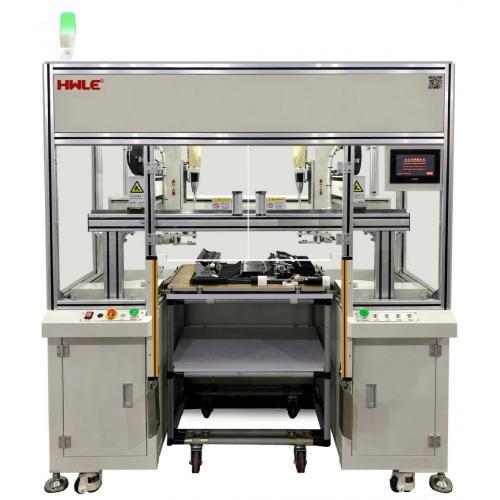

Six-shaft gantry screw machine HW-30DG（DG301 DG302）
A variety of feeding, independent tooling, six axis gantry operation, intelligent detection, according to the workpiece and screw design.Double unit independent lock, with double head or multi-head, suitable for large work pieces or the same kind of work pieces lock a variety of different screws.
Apply to screw
specifications ：M1.0 L2.0-20 mm - 90 mm
category ：Cross hexagonal head plum word double head gasket screw socket buckle
The equipment parameters
Working power： supply AC220V 50Hz  2200W
Work pressure：5.5±0.5kgf/cm2
The torque limit ：300kgf.cm(30N.m)
Running accuracy ：500mm/sec±0.02mm/axis
Operating mode ：PLC+ human machine interface
Drive way ：Servo motor + motor drive
Movement module： Precision lead screw + linear slide rail
Program control： Autonomic program development stores 20 groups *20 points
Tighten the way :Air blowing 1.5s/time air sucking 1.8s/time air sucking 2.0s/ time
Apply screwdriver: Electric driver pneumatic driver servo driver
Effective stroke :900(X)*500(Y)*150(Z)mm (customized)
Overall dimensions :1300(L)*1000(W)*1800(H)mm (customized)
Integration capabilities :Six axis cantilever running screw intelligent detection of missing material sliding teeth floating lock leakage lock bad alarm and prompt
