Desktop 6-Axis Screw Locking Machine

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Land, Air, Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, City
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Certificate:	ISO9001, ISO14001, CE
HS Code:	84798999
Transportation:	Land,Air,Ocean
Port:	Shanghai

Product Description

The machine has the functions of Six axis double head independent screw intelligent detection of missing material sliding teeth floating lock leakage lock bad alarm and prompt and so on.

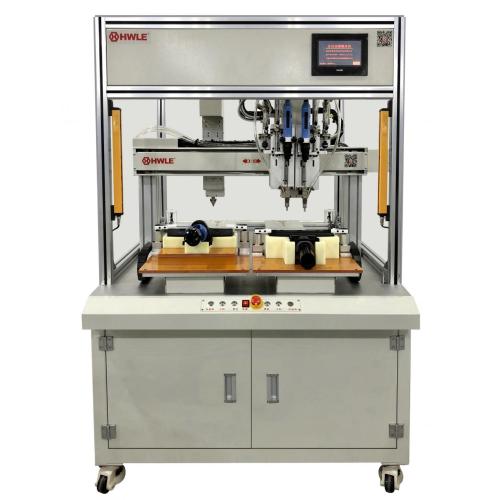

Six-spindle backrest Screw MACHINE HW-30DK (DK301 DK302)
A variety of feed, six axis running, intelligent detection, back to back lock payment, intelligent detection, according to the workpiece and screw design.Six axis double head lock, tooling move, with double head or multi-head, suitable for the same type of workpiece lock two different screws.
Apply to screw
specifications	M1.0 L2.0-20 mm - 90 mm
category	Cross hexagonal head plum word double head gasket screw socket buckle
The equipment parameters
Working power supply	AC220V 50Hz 2200W
Work pressure	5.5±0.5kgf/cm2
The torque limit	300kgf.cm(30N.m)
Running accuracy	500mm/sec±0.02mm/axis
Operating mode	PLC+ human machine interface
Drive way	Servo motor + motor drive
Movement module	Precision lead screw + linear slide rail
Program control	Autonomic program development stores 20 groups *20 points
Tighten the way	Air blowing 1.5s/time air sucking 1.8s/time air sucking 2.0s/ time
Apply screwdriver	Electric driver pneumatic driver servo driver
Effective stroke	900(X)500(Y)150(Z)mm (customized)
Overall dimensions	1300(L)1000(W)1800(H)mm (customized)
Integration capabilities	Six axis double head independent screw intelligent detection of missing material sliding teeth floating lock leakage lock bad alarm and prompt

Six-axis Backrest Screw Locking Machine

Features:

1. Versatile, rugged and are “automatic feeder ready”

2. Flexibility: Standard universal fixtures are suitable for a wide range of production requirements.

3. Extensive versatility: M1-M4 screw locking can be achieved by replacing the feed screw module.

4. Desktop type can be placed on the production line.

5. High-rigidity aluminum alloy multi-axis design ensures reliability and accuracy.

6. More user-friendly touch screen or teaching pendant operation, easy to operate. External technical parameters and manual test functions can be directly adjusted by the technician.

7. The screw locking mechanism can work without a teach pendant connection.

8. ODM or OEM is OK
