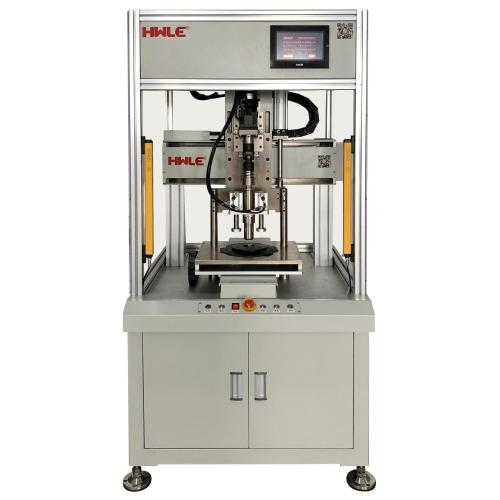

Servo Screwdriver Braces Screw Locking Machine

Servo Screwdriver Braces Screw Locking Machine

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Certificate:	ISO9001, ISO14001, CE
HS Code:	84798999
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

Servo screw tightening machine

A variety of feed, autonomous program, servo lock pay, intelligent detection, can display and storage lock pay torque.Servo screwdriver or servo motor lock pay, section setting torque and speed to meet the differential requirements of lock pay

Apply to screw
specifications	M2.0 L2.0-32 mm - 120 mm
category	Cross hexagonal head plum word double head gasket screw socket buckle
The equipment parameters
Working power supply	AC220V 50Hz 2200W
Work pressure	5.5±0.5kgf/cm2
The torque limit	3000kgf.cm(30N.m)
Running accuracy	1000mm/sec±0.02mm/axis
Operating mode	PLC+ human machine interface
Drive way	Servo motor + motor drive
Movement module	Precision lead screw + linear slide rail
Program control	Adaptive torque
Tighten the way	Air blowing 1.5s/time air sucking 2.0s/time air sucking 2.5s/ time
Apply screwdriver	Servo motor servo screwdriver
Effective stroke	600(X)400(Y)150(Z)mm (customized)
Overall dimensions	1000(L)900(W)1700(H)mm (customized)
Integration capabilities	Servo screwdriver display or storage torque intelligent detection of missing material slip tooth floating lock leakage lock bad alarm and prompt
