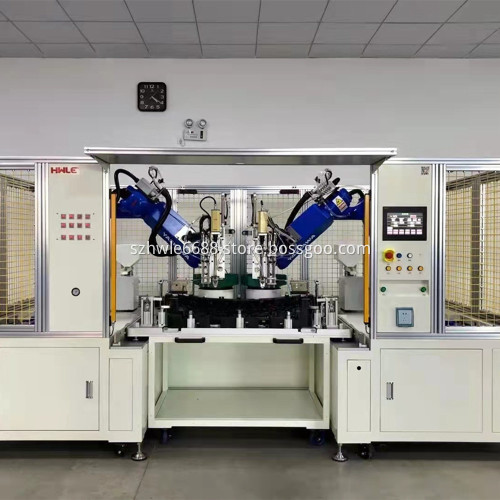

Precise Desktop Auto Locking Screw Machine Robotic

The machine is designed and produced according to the screws specifications, screw torque and tightening request.

The Parameters Of Robot Automatic Locking Screw Machine
Applicable specifications: M1.0-20mm, L2.0-90mm
Tightening: Screws, nuts, sleeves, rivets, plugs, gaskets, washers
Working pressure: 5.5±0.5kgf/cm2
Torque upper limit: 500kgf.cm (50N.m)
Running accuracy: 1000mm/sec ±0.02mm/axis
Control method: PLC+HMI Industrial computer +Display
Motion module: Four-axis ,six-axis, multi-axis robot
Programming: Independent development of English operating software
Feeding method: Pneumatic blowing, pneumatic suction, blowing and suction
Stuck rate: ≤0.1%
Tightening speed: 1.5-2.5/screw
Screwdriver: Servo screwdriver, electric screwdriver
Effective stroke: According to product customization
Integrated function: Robot movement Torque detection + depth control + MES function Sliding teeth + floating lock + leak lock alarm and prompt

The machine can be equipped with servo screwdriver, the servo tightening system needs to perform tasks through servo motors, PLCs, and drives, and can run complex algorithms. The torque control is more precise, the torque value can be given in real time, and the action is executed according to the torque reference value to complete the high standard and difficult lock work.

Servo automatic screw locking machine-torque controllable, real-time data display, fast locking speed. It saves 3-5 labor and is generally used for products with higher precision. The price is generally higher, but its configuration is also higher than that of the general screw machine, and the quality of the lock is better, and the product defect rate is extremely low.

The controller interface displays the main data of the tightening process in real time: actual torque value, rotation angle value, process time, eligibility etc.; displayed and set by the touch screen.

The machine can be equipped with CCD camera, so it is known as ccd vision automatic screw lock machine, the CCD camera takes pictures to correct the coordinates of the hole position, detects parts, and assists in positioning the inaccurate workpiece operation.

The automatic locking screw machine can be used in the following industries
1. Communication industry: mobile phones, cameras, hard disks, keyboards, printers, computers, DVDs, home appliances, plastics, toys, electrical appliances, communication equipment, toys, electronic processing and assembly, etc.
2. Automobile industry: new energy battery tray, rearview mirror.
3. Screw assembly of electric tools, garden tools, motors and other parts.
4. Lighting fixtures.
