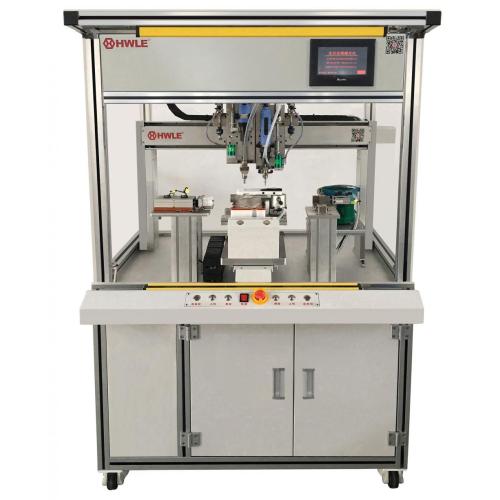

Pneumatic Robot Pneumatic Screw Driver Machine

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Certificate:	ISO9001, ISO14001, CE
HS Code:	84798999
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai

Product Description

Pneumatic blow screw, automatic program, pneumatic lock pay, intelligent detection,Automatic Locking Screw Machine customized according to the workpiece and screw.screw tightening machine robots is suitable for screws with a total length larger than the nut. screw tightening machine robots The total length of the screws is in line with the requirements of optimized air-blown type, with high locking efficiency.

Apply to screw
Specifications	M1.2-20mm total length ≥ cap diameter 2.0mm
Category	Hexagonal cross plum word double - ended gasket screw socket buckles
The equipment parameters
Working power supply	AC220V 50Hz 1600W
Work pressure	5.5±0.5kgf/cm2
The torque limit	300kgf.cm(30N.m)
Running accuracy	500mm/sec±0.02mm/axis
Operating mode	PLC+ human machine interface
Drive way	Servo motor + motor drive
Movement module	Precision lead screw + linear slide rail
programming	Autonomic program development stores 20 groups *20 points
Tighten the way	Air blowing and feeding about 1.5s/ time (pinning rate ≤1‰)
Apply screwdriver	Electric driver pneumatic driver servo driver
Effective stroke	500(X)400(Y)120(Z)mm (customized)
Overall dimensions	900(L)850(W)1700(H)mm (customized)
Integration capabilities	Pneumatic blow screw intelligent detection of missing material slip tooth floating lock leakage lock bad alarm and prompt

1.Applies to most of the screws, strong commonality, the screw length to diameter ratio and material there is no requirement.
2.Can replace artificial specific screw lock pay operations, realizing mechanization production.Reduce the labor intensity of workers.The traditional manual screw placement, and alignment of the screw head need to work takes up a lot of time and energy.
3.Do not need to match the external computers , convenient installation.Setting operation is simple, the staff quickly master the operation skill and debugging.
4.Apply to mobile phones, digital products, photoelectric, health care, small household electrical appliances.

Pneumatic Screw Locking Machine
