Fully Automatic Electric Products Assembly Locking Screw Machine

Fully Automatic Electric Products Assembly Locking Screw Machine

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Productivity:	1000
Supply Ability:	1000
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,EXW,CIF,FAS,FCA,CPT,CIP
Certificate:	ISO9001, ISO14001, CE
HS Code:	84798999
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

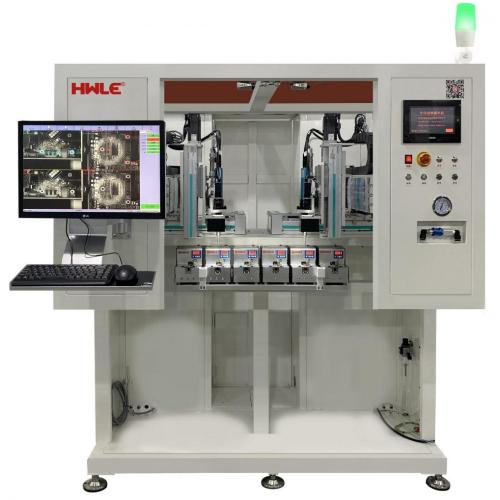

In-line screw Machine HW-30R (R301 R302)
A variety of feeding, online lock payment, intelligent detection, according to the actual production line needs to design the appropriate online way.Automatic positioning online lock payment, automatic positioning of the line body or connecting line to achieve automatic operation.

Fully Automatic Electric Products Assembly Locking Screw Machine

Apply to screw
Specifications	M1.0 L2.0-20 mm - 90 mm
Category	Cross hexagonal head plum word double head gasket screw socket buckle
The equipment parameters
Working power supply	AC220V 50 hz 2000 w
Work pressure	5.5 + / - 0.5 KGF/cm2
The torque limit	300kgf.cm(30N.m)
Running accuracy	500 mm/SEC plus or minus 0.02 mm/axis
Operating mode	PLC+ human machine interface
Drive way	Servo motor + motor drive
Movement module	Precision lead screw + linear slide rail
programming	Autonomic program development stores 20 groups *20 points
Tighten the way	Air suction 1.5s/time air suction 1.8s/time air suction 2.0s/ time (nail sticking rate ≤1‰)
Apply screwdriver	Electric driver pneumatic driver servo driver
Effective stroke	800(X)400(Y)150(Z)mm (customized)
Overall dimensions	1500(L)1200(W)1800(H)mm (customized)
Integration capabilities	Pneumatic suction combined with screw intelligent detection of missing material sliding teeth floating lock leakage lock bad alarm and prompt
