Precision Multi-head Synchronous Screw Locking Machine

Introduction Of Multi-head Synchronous Screw Locking Machine
Fully Automatic Locking Screw Machine, also known as Automatic Screw Locking Machine, , Automatic Screw Driving Machine, Automatic Screw Fastening Machine，Auto Screw Locking Machine, Robt Screw Locking Machine etc.The machine can be equipped with electric or servo screwdriver, CCD camera, MES.
According to the tightening request, it can be designed as Turntable Screw Locking Machine, Online Auto Locking Screw Machine, 6-axis Automatic Locking Screw Machines. According to the screw feed, it is designed to Pneumatic Screw Locking Machine, air suction Screw Tightening Machine .

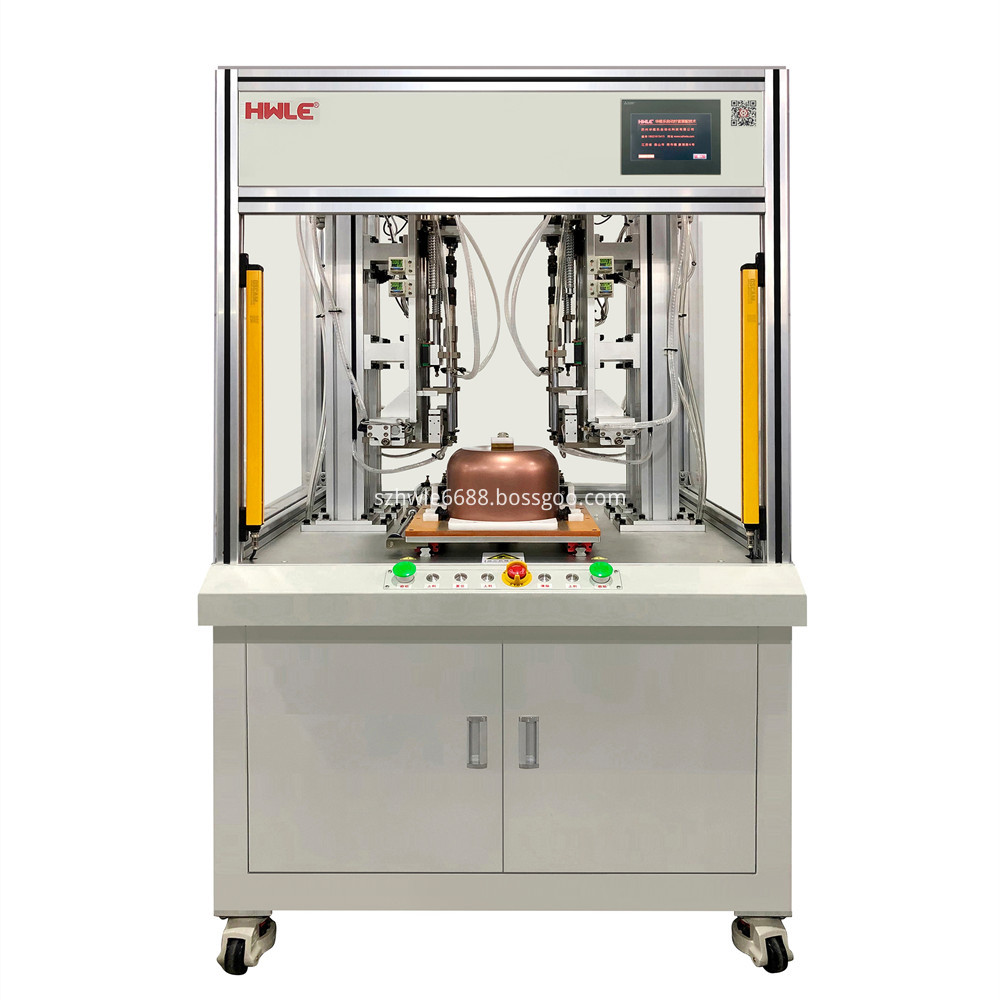

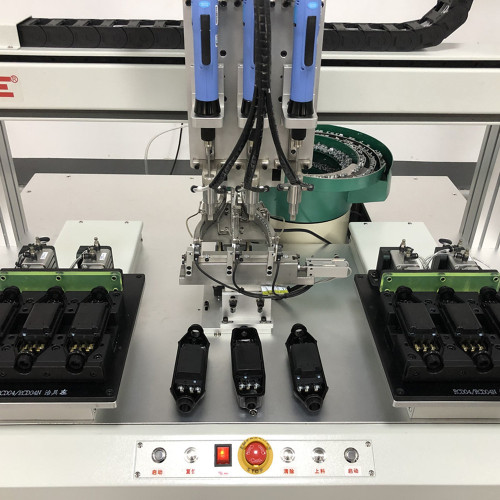

This machine is composed of an automatic feeding screw head, a feeding system, a rotating disk, a fixture, a frame, a protection device, and a control part installed at a right angle, according to the tightening request and the product conditions, the machine can be equipped with CCD, MES. And the machine can be designed with single head, double heads, four heads etc. The features of multi-head screw machine is multi-head synchronous tightening assembly, often used for flat hole or large amount of work.

Features of automatic locking screw machine

1. It is mainly composed of screw automatic conveying system, screw locking mechanism, electrical control system and so on.

2. Strong applicability, changing the product, only need to change the jig, and the position of the electric batch can be adjusted.

3. The screw is automatically fed. After the screw is locked on the batch head, the screw is automatically blown to the batch nozzle by the air pipe.

4. Sliding tooth does not feed: in the locking project, the torque cannot be reached, and the screw will not be sent out.

5. Good stability, no material jam, even if the material is jammed due to a defect, the jam can be solved within a few seconds.

6. High efficiency, the time to lock and pay for a product is about 3S. (There are slight differences in the length of the screw). You don't need to grab the screw, just put the product on the fixture to operate the device.

7. It can reduce 2 to 5 workers' screw locking operation, realize fully automatic production, reduce the labor intensity of workers and improve productivity.

8. One device can lock different product models of the same screw.
