Pneumatic Screw Locking Machine for Industry

Pneumatic Screw Locking Machine for Industry

$4500.00 - $50000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, 铁路

Port:: Shanghai, Qingdao, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Productivity:	3000
Supply Ability:	3000
Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Certificate:	ISO9001/ISO14001, CE
HS Code:	84798999
Transportation:	Ocean,Land,Air,铁路
Port:	Shanghai,Qingdao,Ningbo

Product Description

Fixture Turning Screw Locking Machine ：variety of feed, Fixture Turning Screw Locking Machine has autonomous program, rotating lock pay, intelligent detection, according to the workpiece and screw design.Fixture rotation ensures that the locking surface is horizontal and vertical, suitable for different angles or different directions of the workpiece locking.

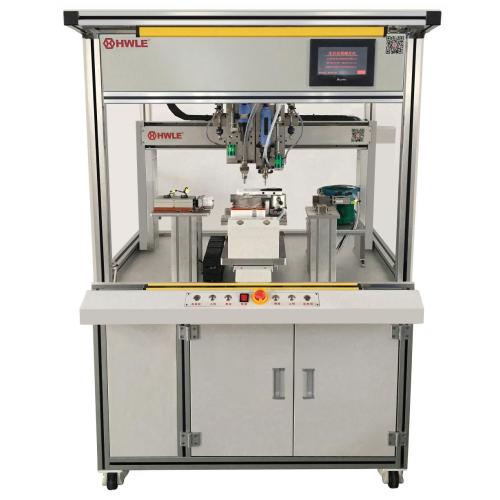

Fixture Rotating Automatic Screw Feeding and Tightening Machine HW-60F
Vertical or horizontal multi-angle turning of the jig, work with different angles or different orientations
Applicable parts	Specifications	M1.0-20mm L2.0-90mm
	Catalogery	Screws, nuts, sleeves, rivets, plugs, washers
Equipment parameters	Working power supply	AC220V 50Hz 2000W (or 60Hz)
	working pressure	5.5±0.5kgf/cm2
	Torque upper limit	500kgf.cm(50N.m)
	Running accuracy	1000mm/sec ±0.02mm/axis
	Control method	PLC+HMI Industrial Personal Computer+display
	Motion module	Servo motor + screw slide ;linear motor + linear slide
	Programming	Independent development of Chinese and English operating software
	Feeding method	Pneumatic blowing Pneumatic suction, Blowing and suction (stapling rate ≤ 1‰)
	Working speed	1.5-3.0second/time
	Applicable screwdriver	Electric screwdriver Servo screwdriver
	Effective stroke	According to product customization
	Integrated function	Fixture flip, torque detection + depth control + MES function, sliding teeth + floating lock + leak lock alarm and prompt

Features:
1. Versatile, rugged and are “automatic feeder ready”

2. Flexibility: Standard universal fixtures are suitable for a wide range of production requirements.

3. Extensive versatility: M1-M4 screw locking can be achieved by replacing the feed screw module.

4. Floor Stand or Desktop type can be placed on the production line.

5. High-rigidity aluminum alloy multi-axis design ensures reliability and accuracy.

6. More user-friendly touch screen or teaching pendant operation, easy to operate. External technical parameters and manual test functions can be directly adjusted by the technician.

7. The screw locking mechanism can work without a teach pendant connection.

8. ODM or OEM is OK.
