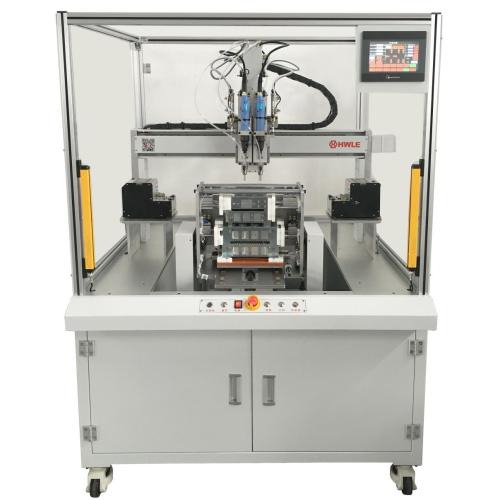

Fixture Turning Screw Locking Machine

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Payment Type:	T/T,L/C
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Certificate:	ISO9001, ISO14001, CE
HS Code:	84798999
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai

Product Description

Fixture Turning Screw Locking Machine ：A variety of feed, autonomous program, rotating lock pay, intelligent detection, according to the workpiece and screw design.Fixture rotation ensures that the locking surface is horizontal and vertical, suitable for different angles or different directions of the workpiece locking.

Apply to screw
specifications	M1.0 L2.0-20 mm - 90 mm
category	Cross hexagonal head double head spacer screw sleeve buckle
The equipment parameters
Working power supply	AC220V 50Hz 2000W
Work pressure	5.5±0.5kgf/cm2
The torque limit	300kgf.cm(30N.m)
Running accuracy	500mm/sec±0.02mm/axis
Operating mode	PLC+ human machine interface
Drive way	Servo motor + motor drive
Lock shaft number	Precision screw + motor drive
programming	Autonomic program development stores 20 groups *20 points
Tighten the way	Air blowing 1.5s/time air sucking 1.8s/time air sucking 2.0s/ time
Apply screwdriver	Electric driver pneumatic driver servo driver
Effective stroke	900(X)500(Y)150(Z)mm (customized)
Overall dimensions	1300(L)1000(W)1800(H)mm (customized)
Integration capabilities	The jig rotates multi-angle screw to detect the missing material sliding teeth floating lock leakage lock bad alarm and prompt

Features:
1. Versatile, rugged and are “automatic feeder ready”

2. Flexibility: Standard universal fixtures are suitable for a wide range of production requirements.

3. Extensive versatility: M1-M4 screw locking can be achieved by replacing the feed screw module.

4. Floor Stand or Desktop type can be placed on the production line.

5. High-rigidity aluminum alloy multi-axis design ensures reliability and accuracy.

6. More user-friendly touch screen or teaching pendant operation, easy to operate. External technical parameters and manual test functions can be directly adjusted by the technician.

7. The screw locking mechanism can work without a teach pendant connection.

8. ODM or OEM is OK.
