Hot sale Precision Dispensing Automatic Tightening Machine

Hot sale Precision Dispensing Automatic Tightening Machine

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Certificate:	ISO9001, ISO14001, CE
HS Code:	84798999
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai

Product Description

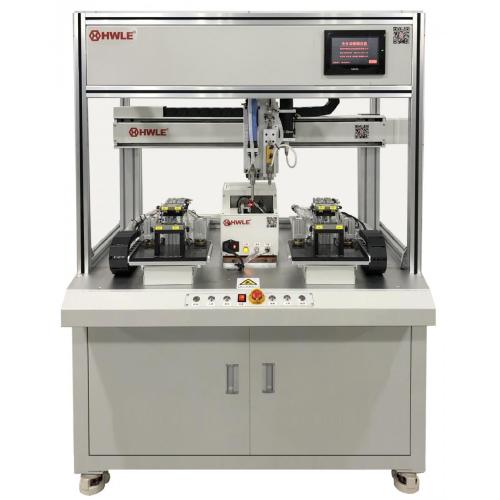

Automatic glue dispensing and tightening machine HW-30E（E301 E302）
Air suction or magnetic snapper, automatic feeding and assembling of snapper, tailor-made according to the shape and size of snapper.Glue in different directions and angles, conventional glue can be assembled synchronously with screws.

Apply to screw
Function	Glue and screw
Category	Ozone glue Silicone sealant cooling glue
The equipment parameters
Working power supply	AC220V 50Hz 2000W
Work pressure	5.5±0.5kgf/cm2
The torque limit	300kgf.cm(30N.m)
Running accuracy	500mm/sec±0.02mm/axis
Operating mode	PLC+ human machine interface
Drive way	Servo motor + motor drive
Lock shaft number	Precision screw + motor drive
programming	Autonomic program development stores 20 groups *20 points
Dispensing shape	Droplet line
Apply screwdriver	Electric driver pneumatic driver servo driver
Effective stroke	600(X)400(Y)150(Z)mm (customized)
Overall dimensions	1000(L)900(W)1700(H)mm (customized)
Integration capabilities	Automatic control glue quantity intelligent detection glue and screw lack material leak lock bad alarm and prompt

Features:
1. Versatile, rugged and are “automatic feeder ready”

2. Flexibility: Standard universal fixtures are suitable for a wide range of production requirements.

3. Extensive versatility: M1-M4 screw locking can be achieved by replacing the feed screw module.

4. Floor Stand or Desktop type can be placed on the production line.

5. High-rigidity aluminum alloy multi-axis design ensures reliability and accuracy.

6. More user-friendly touch screen or teaching pendant operation, easy to operate. External technical parameters and manual test functions can be directly adjusted by the technician.

7. The screw locking mechanism can work without a teach pendant connection.
8. ODM or OEM is OK.
