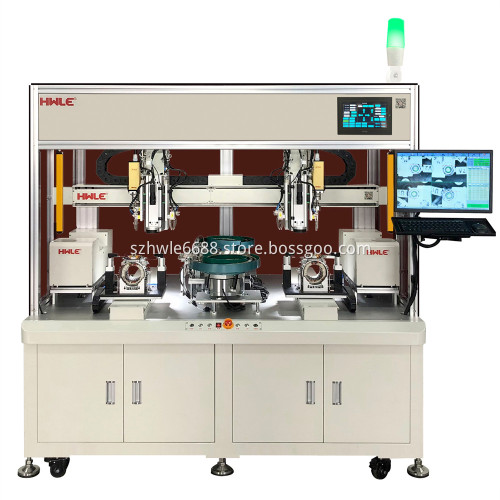

Industrial Screw Locking Automatic Robot Screw Machine

Fully Automatic Locking Screw Machine, also known as Automatic Screw Locking Machine, Automatic Screw Tightening Machine , Automatic Screw Driving Machine, Automatic Screw Fastening Machine etc.

1) According to the structure, it is divided into MES Automatic Locking Screw Machines, CCD Vision Screw Fastening Machine.multi spindle Screw Tightening Machine
2) According to the screw feeding, the machine can be designed as Pneumatic Automatic Screw Locking Machine , Air Blowing Automatic Screw Tightening Machines , Air Suction Screw Locking Machine automatic.
3) According to the coordinate axis, it is divided into 6-axis Automatic Screw Robot Machine With CCD Camera, Robotic screwdriver machine, inline Automatic Screw Machine.

According to the feeding mode, it can be divided into suction screw machine, blow screw machine, and blow and suction combined screw machine.
 Suction screw machine
 If the screw is too small or too short, the air-blowing type (pipe conveying) machine cannot realize automatic screw feeding. The robot drives the electric screwdriver to absorb the screws and move and lock them (locking screws one by one). The screw is mainly used by the adsorption force generated by the compressed air of the electric screwdriver. A single screw is removed, and then it is positioned to the product hole position, and the electric screwdriver is automatically locked into the product.



Blow screw machine
The screw is blown under the batch nozzle by compressed air, and it is automatically locked into the product under the electric batch. The screwing path is programmed and controlled by the manipulator, and the pneumatic screw feeding system cooperates with the work. In addition, the screw anti-skid teeth, missing lock or screw not in place detection functions are added.
