CCD Camera Correction Coordinate Screw Equipment

CCD Camera Correction Coordinate Screw Equipment

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Certificate:	ISO9001, ISO14001, CE
HS Code:	84798999
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

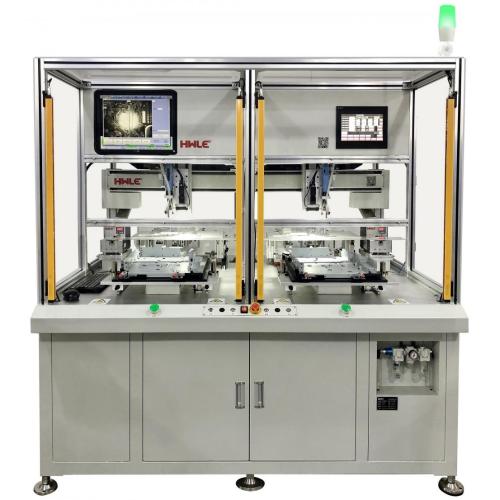

Charge Coupled Device Visual Screw Machine

CCD camera detects the hole position, and corrects the coordinates, and sets the parameters according to the workpiece size and screw hole positioning accuracy.The robot server locking machine check whether the parts are missing and whether the holes are deviated. Charge Coupled Device Visual Screw Machine is suitable for in-line or screw holes easy to be misplaced.

Applicatable parts	Specifications	M1.0-20mm L2.0-90mm
	Category	Screws, nuts, sleeves, rivets, plugs, washers
Equipment parameters	Working power supply	AC220V 50Hz 2000W (or 60Hz)
	Working pressure	5.5±0.5kgf/cm2
	Torque upper limit	500kgf.cm(50N.m)
	Running accuracy	1000mm/sec ±0.02mm/axis
	Control method	PLC+HMI Industrial Personcal Computer+display
	Motion module	Servo motor + screw slide; linear motor + linear slide
	Programming	Independent development of Chinese and English operating software
	Feeding method	Pneumatic blowing, Pneumatic suction, blowing and suction (stapling rate ≤ 1‰)
	Working frequency	1.5-3.0 Second/time
	Applicable screwdriver	Electric screwdriver; Servo screwdriver
	Effective trip	According to product customization
	Integrated function	CCD camera, torque detection + depth control + MES function, sliding teeth + floating lock + leaking lock alarm and prompt

High Quality Visual Screw Machine

Features:
1. Versatile, rugged and are “automatic feeder ready”

2. Flexibility: Standard universal fixtures are suitable for a wide range of production requirements.

3. Extensive versatility: M1-M4 screw locking can be achieved by replacing the feed screw module.

4. Desktop type can be placed on the production line.

5. High-rigidity aluminum alloy multi-axis design ensures reliability and accuracy.

6. More user-friendly touch screen or teaching pendant operation, easy to operate. External technical parameters and manual test functions can be directly adjusted by the technician.

7. The screw locking mechanism can work without a teach pendant connection.
8. ODM or OEM is OK.
