Presion Cantilever Screw Locking Machine

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Certificate:	ISO9001, ISO14001, CE
HS Code:	84798999
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

Cantilever Screw Locking Machine adopts vacuum suction screw method, high universality, overcome the blowing screw can’t send the screw length diameter ratio less than 1.2mm, also overcomes the disadvantage of magnetic suction way can’t suction stainless steel screw . for M1.0 – M4.0 screws all can be applied, such as screw size changed, just need to change the suction nozzle.

Hw 30b2

Presion Cantilever Screw Locking Machine

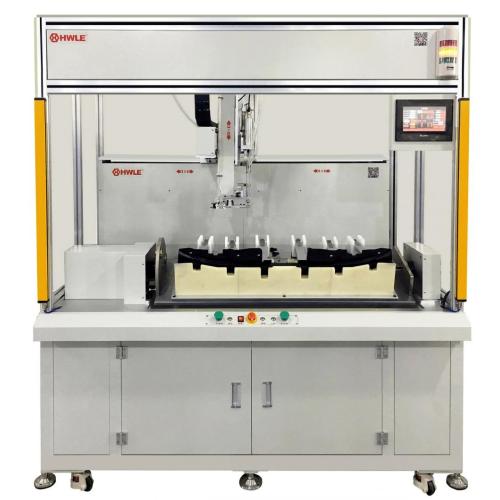

Cantilever screw Machine HW-60B
A variety of feed, autonomous program, cantilever moving lock, intelligent detection, according to the workpiece and screw design.Single head or multi-head lock payment is available for convenient positioning.It can be installed on the pipeline.
Apply to screw
specifications	M1.0 L2.0-20 mm - 90 mm
category	Cross hexagonal head plum word double head gasket screw socket buckle
The equipment parameters
Working power supply	AC220V 50 hz 2000 w
Work pressure	5.5 + / - 0.5 KGF/cm2
The torque limit	600kgf.cm(60N.m)
Running accuracy	1000 mm/SEC plus or minus 0.02 mm/axis
Operating mode	PLC+ human machine interface
Drive way	Servo motor + motor drive
Movement module	Precision lead screw + linear slide rail
programming	Autonomic program development stores 20 groups *20 points
Tighten the way	Air suction 1.5s/time air suction 1.8s/time air suction 2.0s/ time (nail sticking rate ≤1‰)
Apply screwdriver	Electric driver pneumatic driver servo driver
Effective stroke	600(X)400(Y)150(Z)mm (customized)
Overall dimensions	1000(L)900(W)1700(H)mm (customized)
Integration capabilities	Cantilever moving screw intelligent detection of missing material sliding teeth floating lock leakage lock bad alarm and prompt

Screw Locking Machine Cantilever
