Handheld Type Locking Bits With Screw System
  • Handheld Type Locking Bits With Screw System
  • Handheld Type Locking Bits With Screw System
Handheld Type Locking Bits With Screw System
Handheld Type Locking Bits With Screw System

Handheld Type Locking Bits With Screw System

Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Transportation:
Ocean, Land, Air
Port:
Shanghai
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Suzhou, China
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Certificate: ISO9001, ISO14001, CE
HS Code: 84798999
Transportation: Ocean,Land,Air
Port: Shanghai
Product Description
Product Description

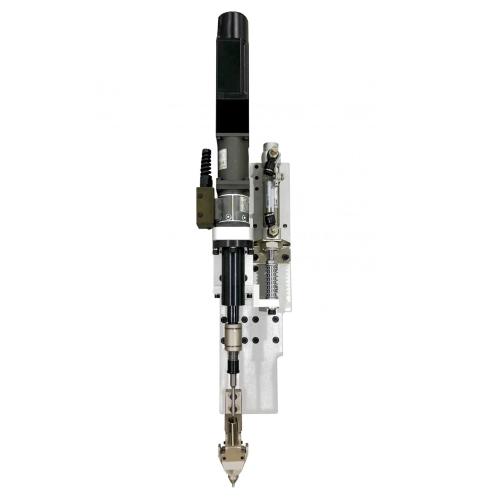

Automatic Tightening Unit HW-A10

Automatic Locking Screw Machine, also known as Automatic Screw Locking Machine, Screw Driver Machine Robot, Automatic Screw Driving Machine, Automatic Screw Fastening Machine etc.
According to the screw feeding, the machine can be designed as Pneumatic Automatic Screw Locking Machine , air blowing Automatic Screw Tightening Machine, Air Suction Screw Locking Machine automatic.
Screw Locking Machine

According to the size of the screw and the depth of the screw hole customized lock module, optional electric screwdriver or servo driver to achieve precise torque control.According to the screw, nut, bolt, pin optional pneumatic suction, air blowing, suction, with automatic feeder to achieve automatic locking.


Apply to screw
category :Small   Medium   Large
The tooth size :M1.0-5.0mm M1.0-10.0mm M3.0-20.0mm
Chief :≤20mm ≤50mm ≤90mm
Applicable partsScrew nut socket clip pin
The equipment parameters
Working power supply :AC220V 50Hz  200W
Work pressure :5.5±0.5kgf/cm2
To pay a single lock :1Pcs 2Pcs 3Pcs  Most
Work beat: 1.0S-3.0S (Depending on the screw)
Tighten the varieties :Staple rate≤1‰(Depending on the part)
Screw holes deep :1.0-300mm
The torque range :0.2-2000kg.cm(0.02-200N.m)
Apply:screwdriver Electric driver Pneumatic driver servo screwdriver
Overall dimensions: 350(L)*100(W)*100(H)mm  (Customized according to screws)
A single set of weight :2.0-10kg(Customized according to screws)
Integration capabilities :Installed in automaton or robot tightening operation to detect missing material sliding teeth floating lock leakage lock bad number signal
