Snap automatic pneumatic screw driver

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Certificate:	ISO9001, ISO14001, CE
HS Code:	84798999
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

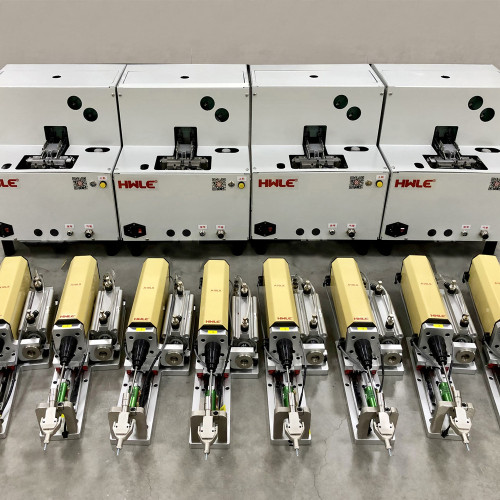

The screwdriver is automatic tightening with robots or modular equipment, setting torque and speed in sections, suitable for tightening of various shapes of screws. It is equipped with automatic locking screw machines.Automatic Locking Screw Machine, also known as Automatic Screw Locking Machine, Screw Driver Machine Robot, Automatic Screw Driving Machine, Automatic Screw Fastening Machine etc.
According to the screw feeding, the machine can be designed as Pneumatic Automatic Screw Locking Machine , air blowing Automatic Screw Tightening Machine, Air Suction Screw Locking Machine automatic.

Automatic Xyz Robot Tightening Machine With Feeder

Apply to screw tightening
category ：Small Medium Large
The tooth size ：M1.0-5.0mm M1.0-10.0mm M3.0-20.0mm
Chief ：≤20mm ≤50mm ≤90mm
Applicable parts：Screw nut socket clip pin
The equipment parameters
Working power supply ：AC220V 50Hz 200W
Work pressure ：5.5±0.5kgf/cm2
To pay a single lock ：1Pcs 2Pcs 3Pcs Most
Work beat： 1.0S-3.0S (Depending on the screw)
Tighten the varieties ：Staple rate≤1‰(Depending on the part)
Screw holes deep ：1.0-300mm
The torque range ：0.2-2000kg.cm(0.02-200N.m)
Apply：screwdriver Electric driver Pneumatic driver servo screwdriver
Overall dimensions： 350(L)*100(W)*100(H)mm (Customized according to screws)
A single set of weight ：2.0-10kg(Customized according to screws)
Integration capabilities :Installed in automaton or robot tightening operation to detect missing material sliding teeth floating lock leakage lock bad number signal
