Low-voltage Medium Electric And Servo Screw Driver

Automatic Tightening Unit apply to mobile phones, digital products, photoelectric, health care, small household electrical appliances.

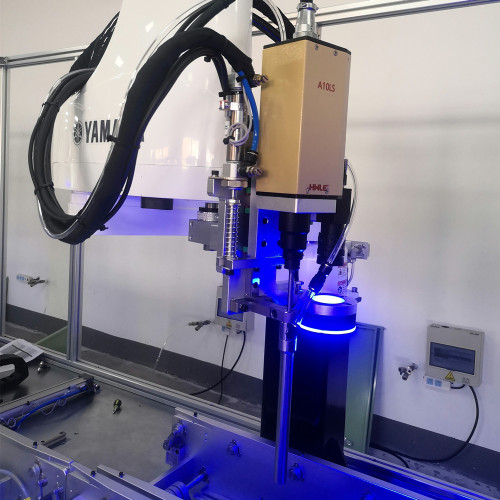

Automatic tightening unit HW-A10
According to the screw feeding, the machine can be designed as Pneumatic Automatic Screw Locking Machine , air blowing Automatic Screw Tightening Machine, Air Suction Screw Locking Machine automatic.

Apply to screw
category :Small Medium Large
The tooth size :M1.0-5.0mm M1.0-10.0mm M3.0-20.0mm
Chief :≤20mm ≤50mm ≤90mm
Applicable parts :Screw nut socket clip pin
The equipment parameters
Working power supply :AC220V 50Hz  200W
Work pressure :5.5±0.5kgf/cm2
To pay a single lock :1Pcs 2Pcs 3Pcs  Most
Work beat :1.0S-3.0S (Depending on the screw)
Tighten the varieties :Staple rate≤1‰(Depending on the part)
Screw holes deep :1.0-300mm
The torque range :0.2-2000kg.cm(0.02-200N.m)
Apply screwdriver :Electric driver Pneumatic driver servo screwdriver
Overall dimensions :350(L)*100(W)*100(H)mm  (Customized according to screws)
A single set of weight:2.0-10kg(Customized according to screws)
Integration capabilities:Installed in automaton or robot tightening operation to detect missing material sliding teeth floating lock leakage lock bad number signal
