Product Description

Automatic Tightening Unit

1.Applies to most of the screws, strong commonality, the screw length to diameter ratio and material there is no requirement.

The screwdriver is automatic tightening with robots or modular equipment, setting torque and speed in sections, suitable for tightening of various shapes of screws. It is equipped with Automatic Locking Screw Machines.Automatic Locking Screw Machine, also known as Automatic Screw Locking Machine, Screw Driver Machine Robot, Automatic Screw Driving Machine, Automatic Screw Fastening Machine etc.

Servo Motor Screwdriver
According to the screw feeding, the machine can be designed as Pneumatic Automatic Screw Locking Machine , air blowing Automatic Screw Tightening Machine, Air Suction Screw Locking Machine automatic.

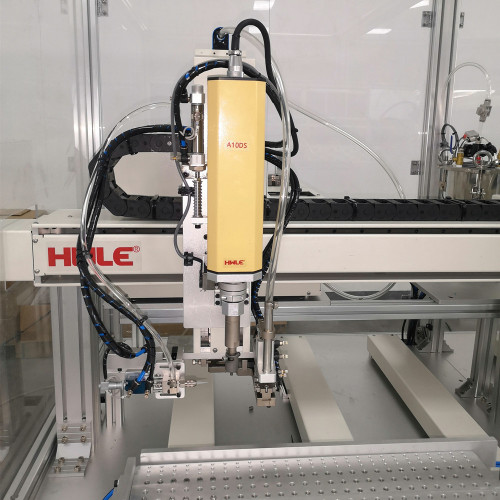

Automatic tightening unit HW-A10
According to the size of the screw and the depth of the screw hole customized lock module, optional electric screwdriver or servo driver to achieve precise torque control.According to the screw, nut, bolt, pin optional pneumatic suction, air blowing, suction, with automatic feeder to achieve automatic locking.
Apply to screw
category	Small	Medium	Large
The tooth size	M1.0-5.0mm	M1.0-10.0mm	M3.0-20.0mm
Chief	≤20mm	≤50mm	≤90mm
Applicable parts	Screw nut socket clip pin
The equipment parameters
Working power supply	AC220V 50Hz 200W
Work pressure	5.5±0.5kgf/cm2
To pay a single lock	1Pcs 2Pcs 3Pcs Most
Work beat	1.0S-3.0S (Depending on the screw)
Tighten the varieties	Staple rate≤1‰(Depending on the part)
Screw holes deep	1.0-300mm
The torque range	0.2-2000kg.cm(0.02-200N.m)
Apply screwdriver	Electric driver Pneumatic driver servo screwdriver
Overall dimensions	350(L)100(W)100(H)mm (Customized according to screws)
A single set of weight	2.0-10kg(Customized according to screws)
Integration capabilities	Installed in automaton or robot tightening operation to detect missing material sliding teeth floating lock leakage lock bad number signal
