Product Description

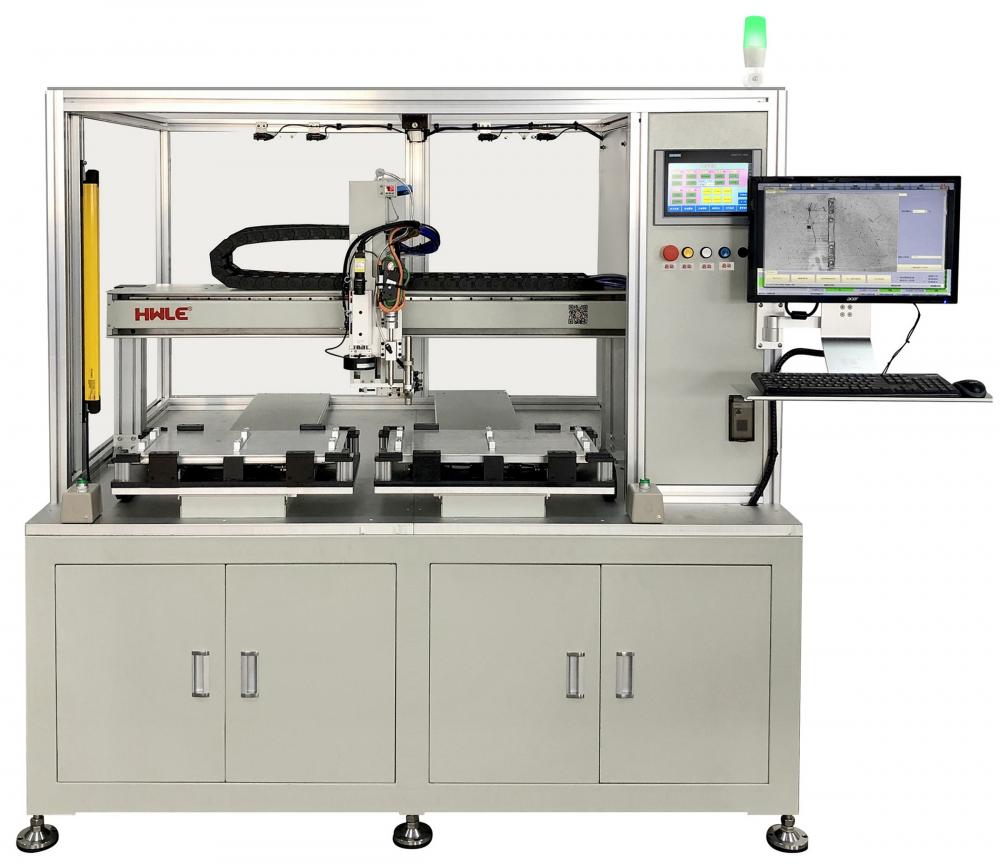

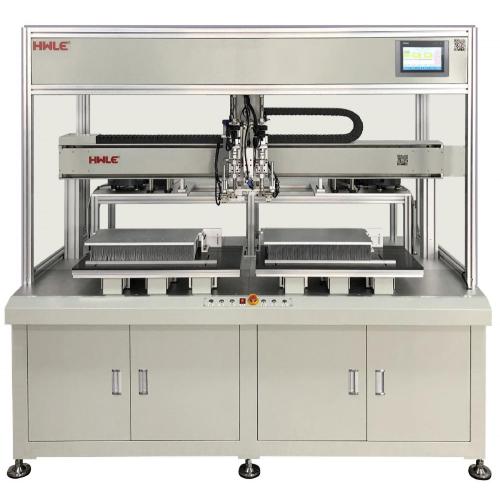

HMI Servo Automatic Screw Fastening Robot

Automatic riveting, servo tightening, automatic riveting, intelligent detection, customized according to different screw riveting materials and sizes.The screw riveting can detect the tightening torque and the riveting stroke, and can increase the CCD guiding positioning.

Apply to screw
function	Spin riveting and pull riveting
category	Carbon steel screw riveting aluminum screw riveting stainless steel screw riveting
The equipment parameters
Working power supply	AC220V 50Hz 2000W
Work pressure	5.5±0.5kgf/cm2
The torque limit	300kgf.cm(30N.m)
Running accuracy	500mm/sec±0.02mm/axis
Operating mode	PLC+ human machine interface
Drive way	Servo motor + motor drive
Movement module	Precision lead screw + linear slide rail
programming	Autonomic program development store 50 sets *200 points
Tighten the way	Spin riveting + pull riveting about 9.0s/time
Apply screwdriver	Servo motor rotary riveter pressure riveter
Effective stroke	600(X)400(Y)150(Z)mm (customized)
Overall dimensions	1000(L)900(W)1700(H)mm (customized)
Integration capabilities	Automatic screw riveting automatic pull riveting intelligent detection of lack of material torque stroke bad alarm and prompt
