Product Description

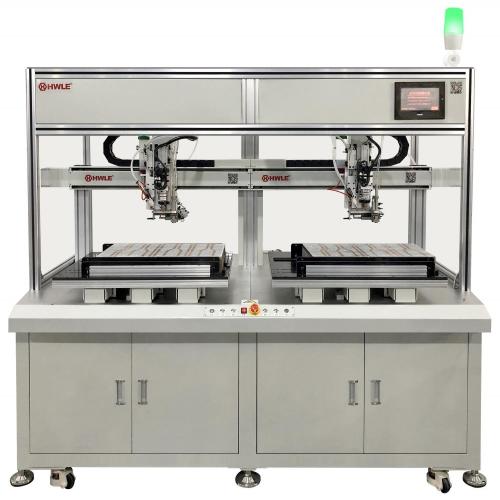

Multi Spindle Screw Driver Tightening Machine

Automatic retainer tightening machine

Air suction or air suction teeth, can be divided into positive and negative direction, self - applicable positive and negative teeth, according to the teeth.Automatic retainer tightening machine tooth is automatically withdrawn after the tooth is tightened. The function of adding glue and depth detection can be used for single-head or double-head operation.

Apply to screw
specifications	Automatic retainer + automatic retainer
category	Self-tapping tooth socket wire tooth socket
The equipment parameters
Working power supply	AC220V 50Hz 2000W
Work pressure	5.5±0.5kgf/cm2
The torque limit	500kgf.cm(50N.m)
Running accuracy	1000mm/sec±0.02mm/axis
Operating mode	PLC+ human machine interface
Drive way	Servo motor + motor drive
Movement module	Precision lead screw + linear slide rail
programming	Autonomic program development stores 20 groups *20 points
The assembly way	Blow suction approx. 5.0S air suction approx. 7.0S
Assembly speed	Compaction + detection is about 4.0s/time
Assembly test	Depth detection Photoelectric detection
Effective stroke	600(X)400(Y)150(Z)mm (customized)
Overall dimensions	1000(L)900(W)1700(H)mm (customized)
Integration capabilities	Automatic screwing of positive and negative rotation detects floating lock of missing material and gives alarm and prompt
