OEM Customized Automatic Head Patch Fastening Machine

OEM Customized Automatic Head Patch Fastening Machine

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Certificate:	ISO9001, ISO14001, CE
HS Code:	84798999
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

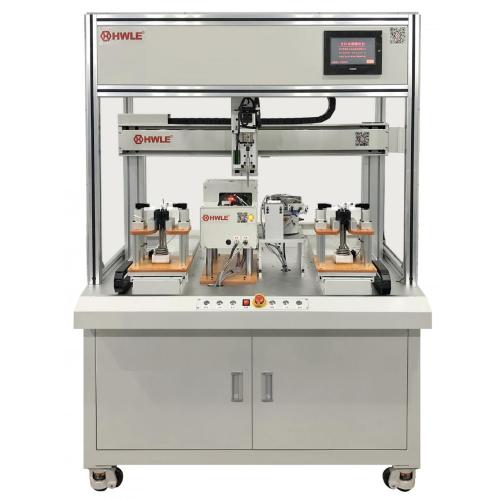

Hot sale precision Automatic Nut Tightening Machine

Automatic nut tightening machine HW-30N（N301 N302）
The six-sided limit of the nut automatically takes the material and tightens automatically. The depth detection can be added. It is designed according to the shape of the nut.It can be tightened with washer synchronously, suitable for nuts of various materials, single or double head operation is optional.
Apply to screw
Function	M3.0-36 mm
Category	Hexagonal round square fan flange
The equipment parameters
Working power supply	AC220V 50Hz 2000W
Work pressure	5.5±0.5kgf/cm2
The torque limit	2000kgf.cm(30N.m)
Running accuracy	500mm/sec±0.02mm/axis
Operating mode	PLC+ human machine interface
Drive way	Servo motor + motor drive
Lock shaft number	Precision screw + motor drive
programming	Autonomic program development stores 20 groups *20 points
Tighten the way	Vacuum or magnetic recharging approximately 4.0s/time
Apply screwdriver	Servo motor servo driver
Effective stroke	900(X)500(Y)150(Z)mm (customized)
Overall dimensions	1300(L)1000(W)1800(H)mm (customized)
Integration capabilities	Automatic limit screw nut intelligent detection of missing material slip tooth floating lock leakage lock bad alarm and prompt

Automatic Borehole Tightening Machine

Features:
1. Versatile, rugged and are “automatic feeder ready”

2. Flexibility: Standard universal fixtures are suitable for a wide range of production requirements.

3. Extensive versatility: M1-M4 screw locking can be achieved by replacing the feed screw module.

4. Desktop type can be placed on the production line.

5. High-rigidity aluminum alloy multi-axis design ensures reliability and accuracy.

6. More user-friendly touch screen or teaching pendant operation, easy to operate. External technical parameters and manual test functions can be directly adjusted by the technician.

7. The screw locking mechanism can work without a teach pendant connection.
8. ODM or OEM is OK
