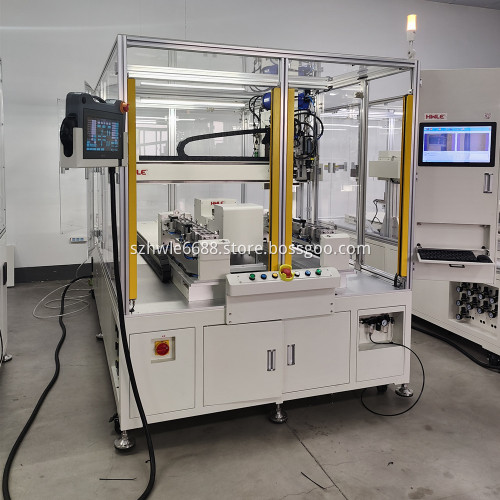

Precise 6-axis Automatic Screw Tightening Machine Robotic

Automatic Locking Screw Machine, also known as Automatic Screw Locking Machine, Automatic Scew Tightening Machine, Automatic Screw Driving Machine, Automatic Screw Fastening Machine etc.
As for the automatic Robot Screw Locking Machine , Z-axis is driven by servo, and the imported ball screw is combined with the slide rail to make the positioning more precise and meet the high-standard production requirements.
Double Y-axis design, alternate operation, not waste time to pick and place products, to maximize production efficiency.
The Automatic Locking Screw Machines can tighen screws, screw sleeves, nuts, plugs, and can install the gaskets, washers, and pins.we can design according to the tightening request.

According to the type of scheme, the equipment is more diverse.
1) According to the screw feeding, the machine can be designed as Pneumatic Automatic Screw Locking Machine, air blowing Automatic Screw Tightening Machine, Air Suction Screw Locking Machine automatic.
2) According to the tighten request, it is divided in to hand held automatic locking screw machine and robot automatic screw tighten machines.
3) According to the coordinate axis, the machine can be divided into Three Axis Locking Screw Machine Automatic, 6-axis Automatic Locking Screw Machines, Multi-axis Fully Automatic Robot Screw Locking Machines. We have produce some fifteen axis automatic screw locking machine for printers.

From the process point of view, it can be divided into: turntable automatic screw locking machine, online automatic screw locking machine.
1) The turntable type can generally realize automatic feeding, and is suitable for automatic locking of combined products. It requires gaskets, nuts, products, etc., which are commonly used in heat sink automatic locking screw machines.
2) On-line screw machine, the screw machine can be installed on the customer's flow line, let the product flow through the equipment, then the product will be fixed and automatically locked.
