3-axis Fully Screw Tightening Machine Automatic

4-axis Fully Automatic Locking Screw Machine For Thread Insert Assembly

The automatic locking screw machine can tighten screws, thread inserts, plugs and assemble gaskets and washers.

Automatic feeding and tightening of wire screw sleeves, controlling tightening torque and depth, and optional punching shank device.

Non-standard automatic screw locking machine can be customized according to customer requirements, and there are many types of design schemes.
According to structure, it is divided into Hand-held Screw Locking Machine, Automatic locking Screw Machines With Robot Arms, Linear Robot Automatic Screw Locking Machine,XYZ-axis Morving Automatic Tightening Screw Machine, Online Robot Locking Screw Machine, Dual-System Standard Automatic Screw Locking Machine, Gantry structure Self-locking Screw Machine,Six-axis Coordinate Automatic Locking Screw Robot.
Except the function of tighening screws, bolts, sleeves, the machien also have the function of  drilling, gluing, automatic nut feeding, automatic workpiece feeding, etc.

The automatic locking screw machine is mainly composed of three core parts: feeding system, locking system, and program control system.

Feeding operating system: The feeder is mainly used.

Locking operating system: electric screwdriver or servo screwdriver, suction nozzle, clamp.

Control system: mainly PLC, single chip microcomputer, motor, guide rail, metal plate

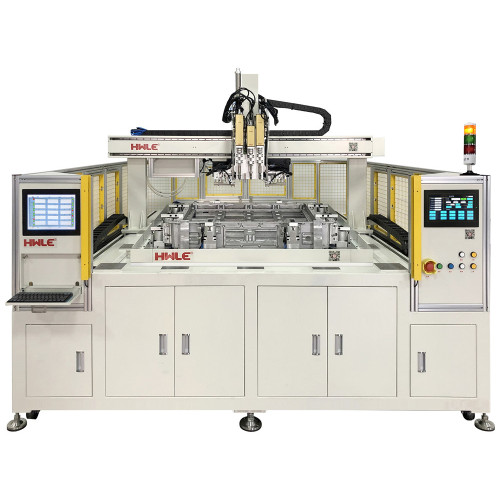

The gantry move to tighten, and the fixture is fixed when tightening. It is often used for heavier or multiple parts operations.
