Ribao Coin Sachet Machine
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | CHINA |
---|---|
Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
Certificate: | ISO9001 |
HS Code: | 84729090 |
Transportation: | Ocean,Land,Air |
Port: | Shanghai |

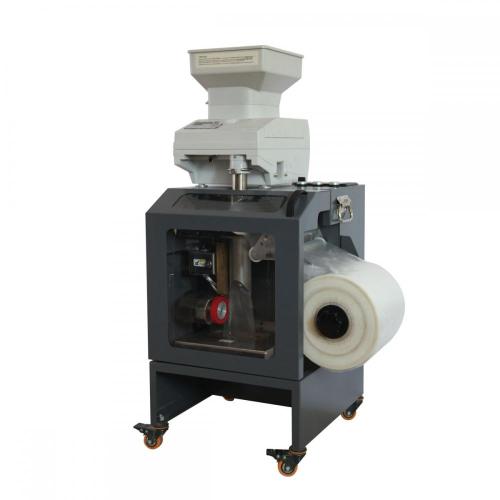

The coin sachet machine is best suited for countries with multisided coins, as they are loosely held in small plastic bank bags. This machine creates identical small clear plastic bags for any coin using a single roll of plastic film and a heated cutter. It ensures you an accurate, secure and cost-effective method of packaging large amounts of coins.
1) Compact Design
The design is very compact compared to traditional coin packing/coin wrapping machines; the castors enable the machine can be easily moved to any place.
2) Simple Operation
The user just puts the coins into the coin counter hopper and presses the START key and then the machine will pack/wrap the coins automatically.
3) Cost Effective
Compared to traditional packing/wrapping with paper, packing/wrapping with plastic bags are more cost effective and save on the cost of labor.
4) Easy Maintenance
The robust electrical and mechanical design provides easy access for cleaning and maintenance.
Specifications
Packing details
Counting speed
≦1500pcs/min(For coins with a diameter of 25mm)
Diameter
14-34.0mm
Thickness
0.8-3.8mm
Hopper capacity
4000pcs
Packing/wrapping speed
≦15packages/min(For coins with a diameter of 25mm.)
Package way
Hot iron
Packing bag size
Length:100-140mm, Width:100mm
Operation interface
HMI
Driving mode
Electric
Power requirements
AC 220-240V 50Hz
Current
AC 6A
Power consumption
1.2KW
Noise
< 70dB
Control system
PLC XC5-32T-E/C
Sachet Machine Dimension(LxWxH)
550*450*650mm
Net Weight
68.5KG
Transportation Packing
1 unit/box (wooden box)
Box Dimension(LxWxH)
580*560*880mm
Gross Weight/Box
85KG
