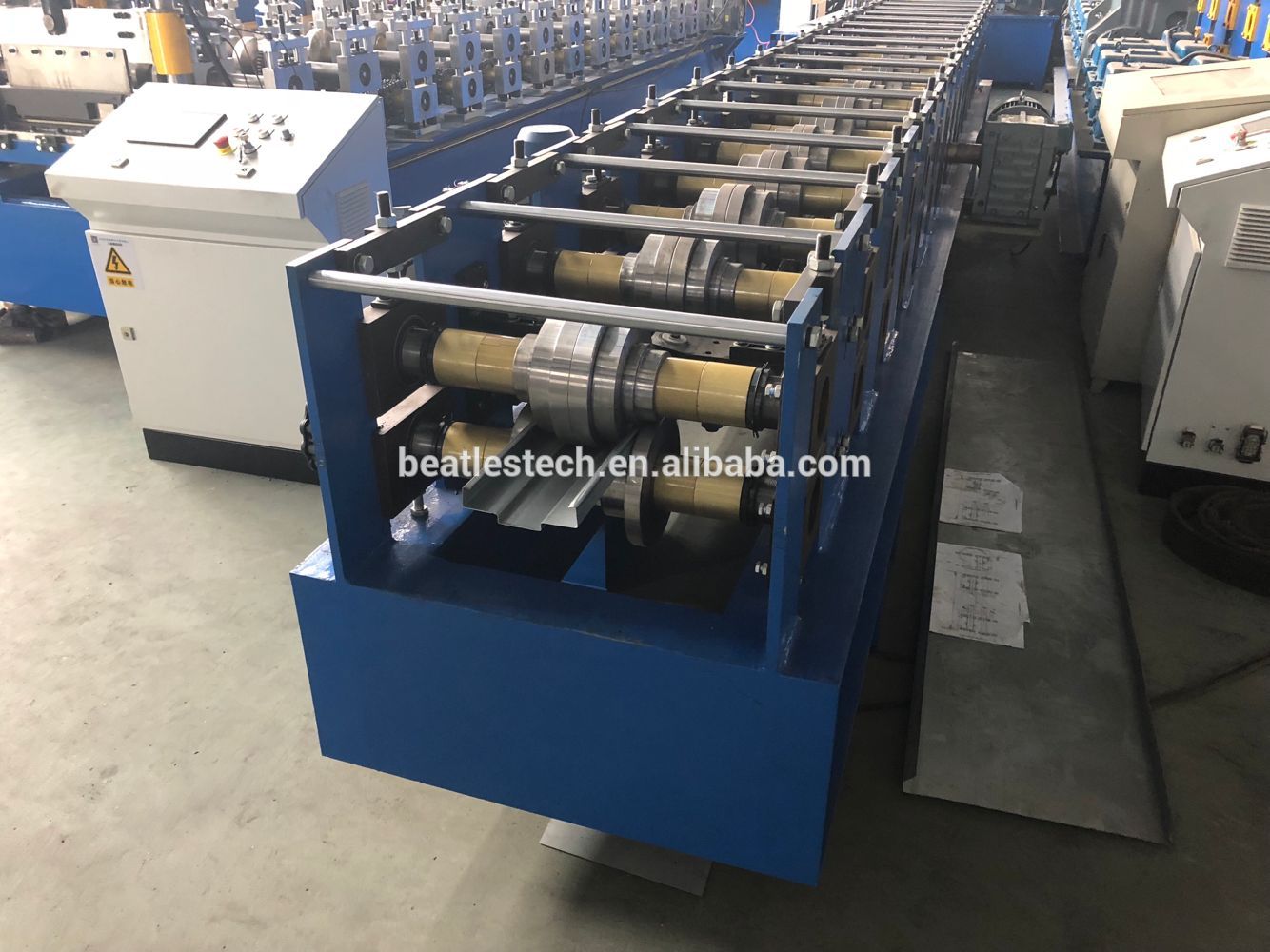

Galvanized door frame roll forming machine
Your message must be between 20 to 2000 characters
Contact NowGalvanized door frame roll forming machin
Z purlin roll forming machine adopts cast iron structure, which will increase the strength of the machine.Driving by gear box, the machine will work more stable. The cutting is after forming so that the cutting position will be very smooth.Thecutting is after forming so that the cutting position will be very smooth. The products are widely used in steel structure buildings.
|
Z PURLIN ROLL FORMING MACHINE |
|
|
|
|||
|
Working process: decoiler-feeding-roll forming-cutting-end product
|
|
|
|
|||
|
power
|
about 5.5KW
|
Roller material
|
SAE1045 with chrome
|
|||
|
Station
|
About 16 stations
|
Drive
|
By chain
|
|||
|
shaft
|
65mm solid
|
Size of line
|
About 8.0mx2.1x1.6m
|
|||
|

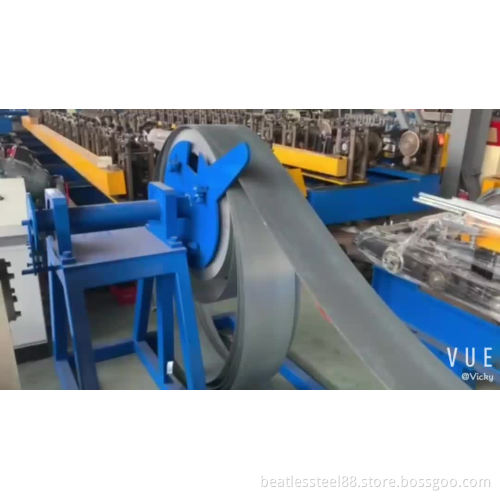

Decoiler
|
Manual or hydraulic
|
Container
|
1X40GP
|
|||
Cutting:
(1)Cutting after forming:Cut the sheet after roil forming to required length
(2)Cutting motion:The main machine automatically stops and the cutting will take place.After the cutting,the main machine will automatically start
(3)Material of blade:CR12 with heat treatment HRC58-62℃
(4)Length measuring:Automatic length measuring
(5)Tolerance of length:3+/- 1.5m
(6)Control system:touch screen and button
(7)Unit:mm
Molding Host:
(1)simple structure,good looks,because the machine uses steel structure,the overall processing after welding,so the structure is simple and reasonable,storage capacity, smooth and reliable operation
(2)other important components of the device,components are used in well-known domestic enterprises,from the surface to effectively ensure the performance of the equipment
(3)The use of automatic fixed length forming punch and cut off,fixed-length positioning accuracy,plate-shaped head and tail appearance neat,no deformation
(4)equipment installation and commissioning, suitable for factory production
(5)equipment,low noise,high efficiency
Control panel:Panasonic
(1)Voltage,Frequency,Phase:380V,50Hz,3 Phase(this is can depend on customer request)
(2)Automatic length measurement
(3)Automatic quantity measurement
(4)Computer used to control length&quantity.Machine will automatically cut to length and stop when required quantity is achieved
(5)Length inaccuracy can be amended easily
(6)Control panel:Button-type switch and touch screen
(7)Unit of length:millimeter(switched on the control panel)
The production flow of equipment:
Decoiler—Leveling—feeding—Punching—cutting—Conveyor table—Forming—Cutting—Out put
