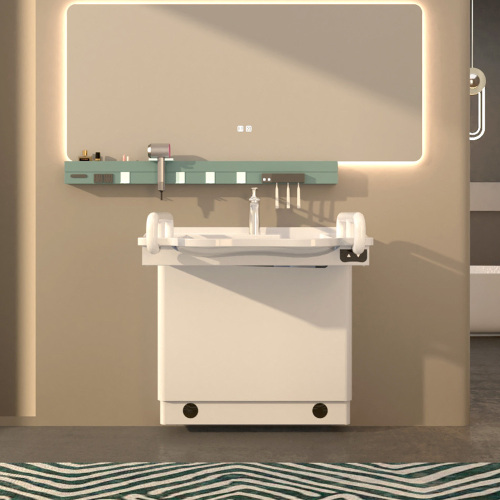

Wheelchair Accessible Height Adjustable Mounted Washbasin



LCS-750-H height adjustable wash Basin for disabled/wheelchair accessibility. The wheelchair accessible wash basins has the function of electric lifting, the lifting range is 730mm (28.7’’) - 960mm (37.8’’), and the lifting speed is 22mm/s, fast and stable. It also has an anti-collision function, when it collides or comes into contact with objects during the lifting process, the lifting will automatically stop to ensure the safety of users; To create a barrier-free bathroom, an electrically adjustable height bathroom sink that is frequently used in daily activities is essential. The electric lifting system realizes the height adjustable accessible bathroom sink. We are a company specializing in electric lifting systems, can provide you with the best quality wheelchair accessible washbasin products and design the best accessible bathroom.



Rated Load	800N
Max. load	1000N
Rated load speed	16±10%mm/s
Stroke	230±10mm
Rated load	1400N
Installation distance	730±10mm
Maximum height	480mm±5mm
Duty cycle	Max.10%,max 2min 18/min
Noise	≤50dB
IP grade	IP42

Product Display



Product Dimensions

Product Application
