Compact Dual Motor Electric Adjustable Desk

Compact Dual Motor Electric Adjustable Desk

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Min. Order:: 50 Set/Sets

Min. Order:: 50 Set/Sets

Delivery Time:: 7-50 Days

Transportation:: Ocean, Land, Air

Port:: Shanghai, Ningbo, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu,China
Productivity:	7000Sets/Month
Supply Ability:	7000Sets/Month
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	IS09001,CE,TUV,UL
HS Code:	94031000
Transportation:	Ocean,Land,Air
Port:	Shanghai,Ningbo,Shenzhen

Product Description

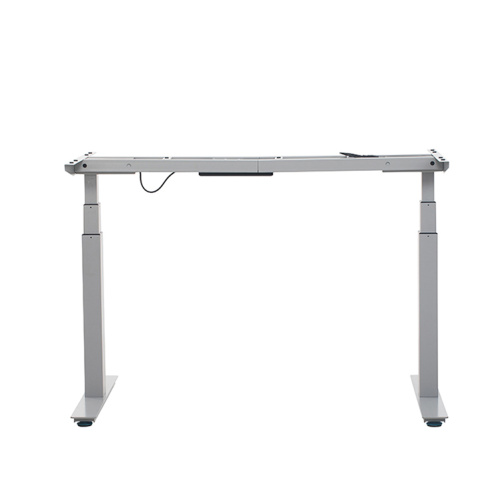

Compact Dual Motor Electric Adjustable Desk

For the working population, sedentary is a common normal, and the health needs of the office environment is also necessary. Standing desk can adjust the height of the lifting desk freely to bring new experience of healthy office for users. Under this kind of office experience, employees are full of more enthusiasm for work, and their work efficiency is also improved. According to the survey of consumers who use stand up desk, more than 98% of the customers say that they like the electric standing desk very much, enjoy the alternate office form of sitting and standing, and will recommend it to their relatives and friends. The increasing market demand for electric adjustable desk reflects the benefits of electric desk to human health.

Specifications

Type	Dual motor
Height range	620-1270mm
Width range	1010-1800mm
Tabletop size	1200-2000mm
Max load capacity	120kg/265IBS
Speed	32-38mm/s
Noise	≤ 50db
Frame color	Black White Grey
Brand	UPLIFTEC
Frame material	Q235 T=2mm
Input voltage	AC 110V-220V
Motor warranty	3 years
GW/NW	34kg/32kg
Package size	1080(L)270(W)236(H)mm 1/1
Package size	1100(L)1100(W)1080(H)mm 16/1

Product Display

1.Dual motor 3 segments leg 2.Soft start/stop feature 3.Anti collision feature 4.Two memory controller 5.No exposed mechanism 6.Overheat/Overload protection 7.Leg unbalance protection

Working principle of electric lifting table

The lifting column of the electric standing table adopts 24 V DC as the power supply

The 24 V permanent magnet DC motor is used as the driving power source

After 24 V DC power is supplied to the motor, the motor rotates and decelerates through the worm and turbine of the motor

A nut is fixed on the inner tube. After the screw rod rotates, the nut moves forward and backward on the screw rod, so that the inner tube moves forward and backward

By switching the positive and negative poles of 24 V DC, the motor will rotate forward or reverse, so that the inner tube is forward or backward

By changing the thread pitch of screw rod and nut, the maximum thrust and speed of push rod can be changed

Standing desk can solve all your problems

1. A healthy life to solve the vicious circle

2. Increase your metabolism and burn your fat at work

3. Improve work efficiency

4. Reduce fatigue and breathe more naturally

5. Keep away from related disease factors

We all know that sedentary is so harmful, but we still haven't taken any measures. It's time to make a change in 2021! Uplift recommends that you buy a desk with adjustable height and a standing desk with dual motors. It's healthier to sit and stand alternately.

Dimensions

Exploded view

Part	Description	Qty	Part	Description	Qty
1	Column	2	9	ST2.9x16 Self-tapping Screw	2
2	Side bracket	2	10	Control box	1
3	ST4.9x19 Self-tapping Screw	14	11	Connector cables	1
4	M6x10 Machine Screw	20	12	Cables	1
5	Frame End 1	1	13	Foot	2
6	Frame End 2	1	14	M6x14 Machine Screw	8
7	Center rail	2	15	Leveling feet	4
8	Handset	1
