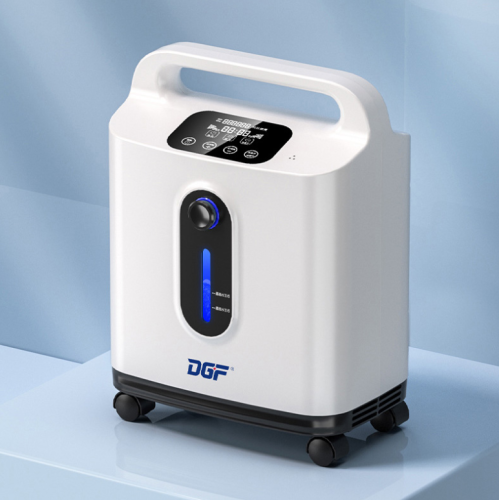

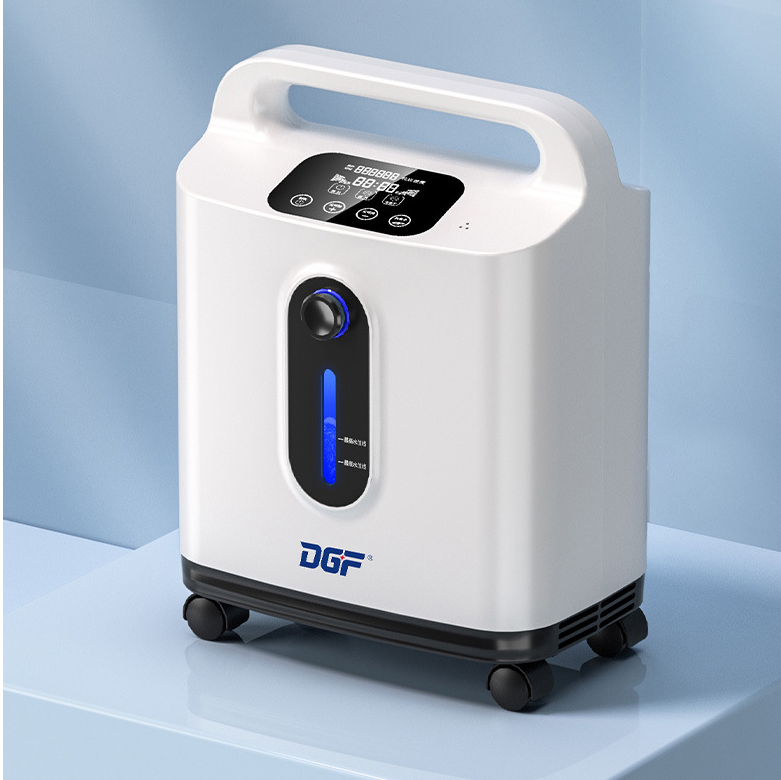

Portable Oxygen Making Machine For Pet

1. Performance characteristics

1.1, this series of oxygen generator is based on high quality domestic molecular sieve as adsorbent through pressure swing adsorption method (PSA) directly from the air to produce oxygen in line with health care oxygen standards, the oxygen generator is small in size, light weight, low power, low noise, simple operation.

Suitable for cats, dogs and other animals with different degrees of physiological hypoxia;

1.2. Main functions

1) With flow regulation function;

2) The upgraded model has atomization function;

1.3, operation interface: Chinese and English operation interface (optional), easy to operate.

1.4, electric and electronic control integrated built-in compressor drive mode.



2. Technical indicators

2.1 Oxygen supply mode

1) Continuous oxygen supply.

2.2 Control mode: solenoid valve control.

2.3 Flow range :1L/min-8L/min.

2.4 Concentration range: 93%-30%.

2.5 Traffic concentration corresponds to the displayed value;

Flow	1L	2L	3L
Concentration	93%	65%	50%

2.5 Safety system
1) Run continuously for 12 hours, shut down;
2) Compressor high temperature, shut down;
2.6 Dimensions :285*180*390mm (height including wheels)
2.7 Weight: about 5.2KG
2.8 Power supply voltage :AC220V 50Hz (please use the power cord supplied with the machine)
2.9 Rated power 120W
2.10 Timing time: up to 4 hours, timing adjusted to 30min.
2.11 Prompt Parameter 1) The voice broadcast prompt corresponding to the key operation;
3, normal working environment
ambient temperature range: 5℃ ~ 40℃; Relative humidity range: 10% ~ 90%RH, non-condensing state; Atmospheric pressure range: 840hPa-1060hPa;
The working environment is normal use, machine life of 3000-5000 hours
