Product Description

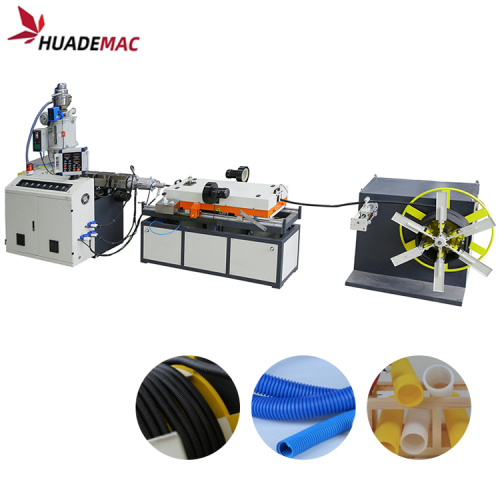

PE PVC corrugated pipe tube making machine

Application

PE PVC PP EVA single wall corrugated pipe machine is used to produce single wall corrugated pipe with diameters from 10 to 63mm which are widely used as electric conduit, drain water pipe for clothing washer and so on.

According to customer requirement, the single wall corrugated pipe machine can automatically insert iron wire into corrugated pipe online.

Common speed corrugated pipe production line

Model	Pipe Diameter	Production speed	Extruder	Mould block qty.
GZ35-2	Φ12-36 mm	6-8 m/min	SJ45/28, 11kw	42 pairs
GZ35-3	Φ12-36 mm	8-10 m/min	SJ45/30, 15kw	62 pairs
GZ55-3	Φ20- 50mm	5-9 m/min	SJ55/28, 18.5kw	62 pairs
GZ80-3	Φ50 -80mm	4-7 m/min	SJ65/28, 30kw	62 pairs

High speed corrugated pipe machine

model	Pipe diameter	Production speed	Extruder	Mould block Qty.
GS-55-4	Φ13-50 mm	10-25 m/min	SJ65/28, 30kw	72 pairs
GS-14-1.8	Φ5-10 mm	10-20 m/min	SJ45/28, 11kw	72 pairs
