PP Single wall plastic corrugated pipe extrusion line

Extruder model: SJ45/30
Forming moulds: 42 pairs of modules =84 pieces

Size:16-20-25-32-40mm

capacity：30-70kg/h

Line occupation:7mX4mX3m

Product Description：

PP PE PVC single wall corrugated pipe extrusion line
It is mainly composed of the extruder, extruder die-head, corrugated pipe forming machine, forming machine chain mould, and winding machine can be added if customers need.

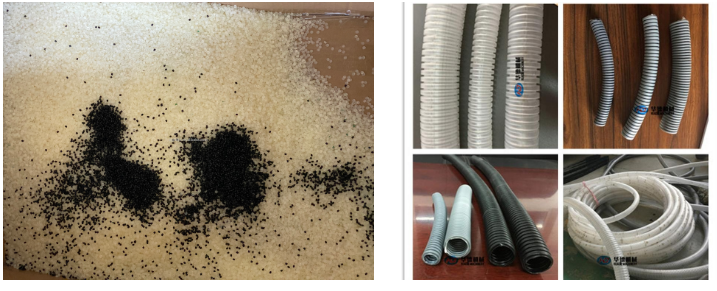

Use: single wall flexible corrugated pipe machine has features of high temperature resistance,resistant to corrosion and
abrasion,high intensity,good flexibility,etc.

Features: They are widely used in fields of auto wire,electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lanterns wire,tubes of air conditioner and washing machine,etc.

Details Images

Single Screw Extruder

Driven motor: It is main part of single screw extruder. We'd better choose good brand AC type driven motor matching with inverter
controll for saving power running cost.

Gear recuder box: It is used for connecting motor and for reducing rotating speed of screw through size and teeth of gear changing
in the gear box.

Screw and barrel: It is most important part of single screw extruder. Design of single screw is becoming to special and customzied
now due to many different kind plasic materials are using. The surface of screw should be paint double alloy for anti-wear.

Casting aluminum heater: It is used for heating barrel and screw which ensure mixed PVC/PE/PP resin material can be plasticizing and melting under the suitable temperature.

Cooling blower : It is used for cooling barrel and screw. if temperature of screw and barrel will be excess setting
temperature,cooling blowers start to work for cooling barrel which avoid PVC/PE/PP material resolved in the inside of barrel.

Hopper : It is used for keep the mixed PVC/PE/PP resin material in the silo and make sure material can be into barrel
continuously. It is like a material transport station.

Control Cabinet: It is used for control whole cornic double screw extruder running by switchs or PLC programes according to different circuits control required.

Die head and Mould

1 Material: 40Cr

2. Inner Diameter of corrubated: 7mm

3 Die head stainless steel heating ring, one heating zone

4 42 pairs of modules = 84 pieces

Packing & Delivery of PP PE single corrugated Pipe Extrusion Line
