High speed hot and cold mixer combination set

High speed hot and cold mixer combination set

$32000.00

1-2 Set/Sets
$31000.00

≥3 Set/Sets

Transportation:: Ocean

Port:: SHANGHAI

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean
Port:	SHANGHAI

Product Description

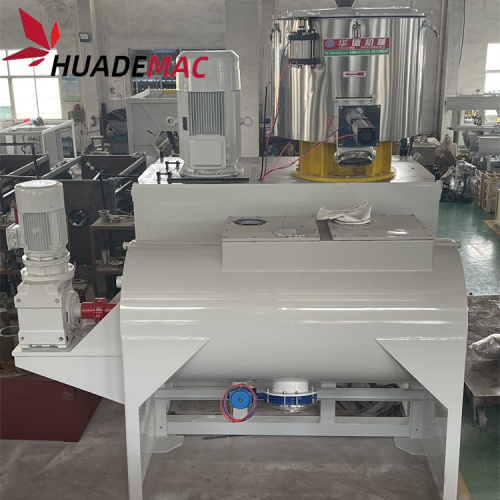

UPVC PVC Plastic Power Caco3 additive Hot Cool High Speed Mixer

SRL-Z series mixer is applicable for mixing,coloring and drying of various resin such as PE PP PVC etc and in the craft of engineering plastics such as ABS, PC etc before forming and processing as well as in the mixing of phenolic resin.

The unit combines heat mixing and cooling mixing craft together. the material after heat mixing can be get into cooling mixer automatically,exhausts remaining gas and prevent agglomeration.

Functions and construction:
1.used for the processes of mixing, drying and drying in the industries of plastic, rubber, chemical and the place of lab as well.
2.The mixer lid is double sealed.
3.With the heating ways of self-friction and electric, etc.
4.With discharging ways of temperature automatic control and manual control.
5.Paddles are entirely made of stainless steel and through dynamic and static balance test.
6.The electric control system adopts the components of famous brand.

Horizontal Plastic Mixer 2

Model	SRL100/200	SRL200/500	SRL300/600	SRL500/1000	SRL800/1600
total volume	100/200L	200/500L	300/600L	500/1000L	800/1600L
effective volume	65/130L	150/320L	225/380L	375/650L	600/1050L
mixing speed	650/1300/80rpm	475/950/80rpm	475/950/80rpm	430/860/60rpm	370/740/50
heat cool manner	electric heating, self friction and water cooling
mixing time	8-12min/batch	8-12min/batch	8-12min/batch	8-12min/batch	8-15min/batch
motor power	14/22/7.5kw	30/42/11kw	40/55/11kw	47/67/15	83/110/22
Diemension(mm)	195016001800	458022402470	480026402480	460030004050	517032004480
weight	2200kg	3400kg	3600kg	6500kg	9800kg
