PET Recycling Granulator Pelletizing Machine

PET Recycling Granulator Pelletizing Machine

USD55000

≥1 Set/Sets

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 50 Days

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	300-350kg
Supply Ability:	10set per month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Certificate:	CE
HS Code:	84778000
Transportation:	Ocean
Port:	Shanghai

Product Description

Description of PET Granulating Machine:

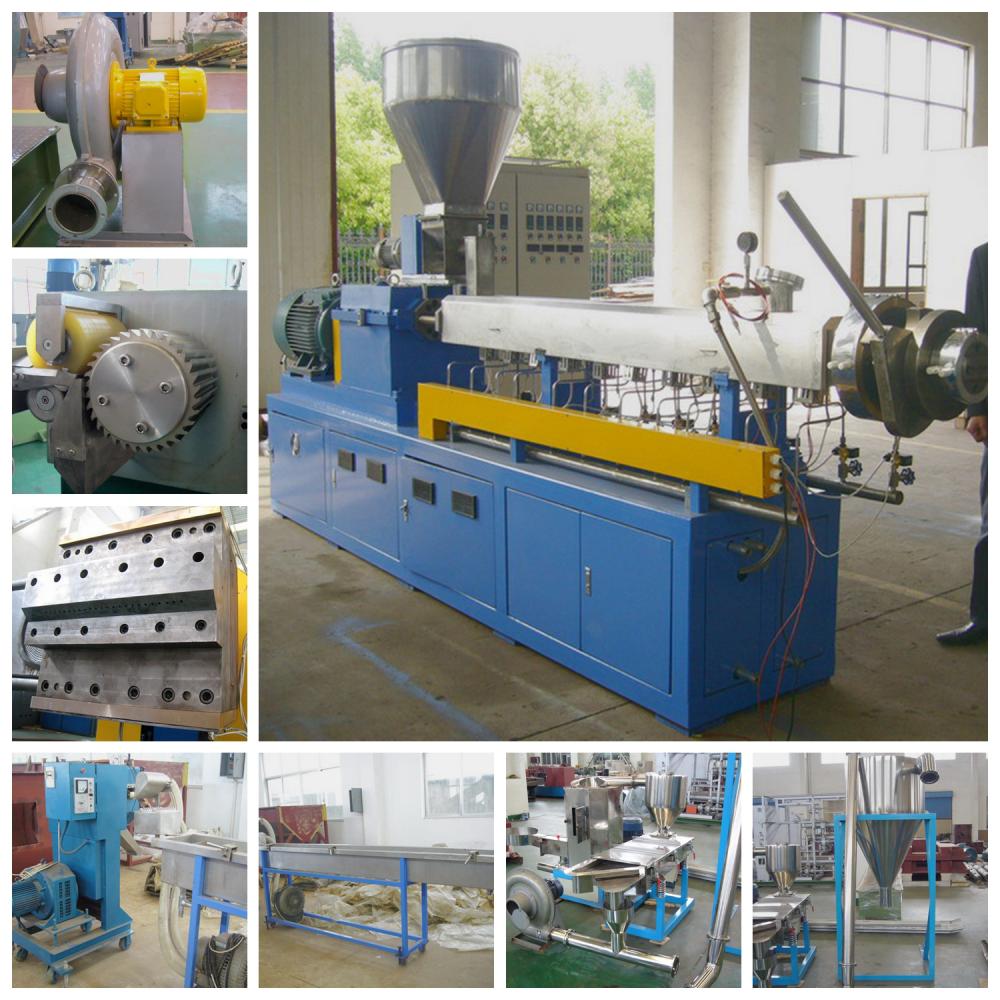

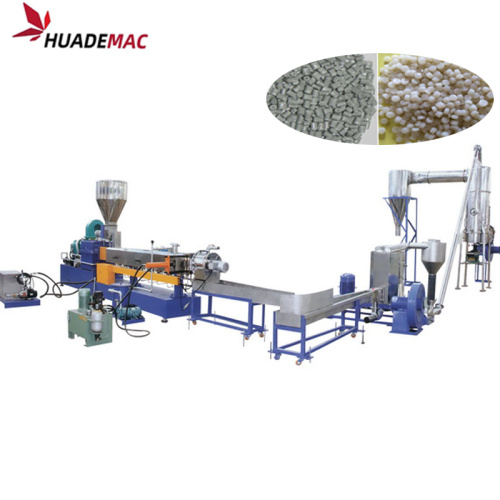

This pet flakes pelletizing line uses SHJ series parallel twin screw extruder, is suitable for producing PET granules from clean PET flakes.This machine is composed by SHJ parallel twin screw extruder, die, hydraulic screen exchanger,plastic strand die head, water cooling tank, cutter, silo.

This machine is mainly used in PET, PVC and other high viscosity materials. with good performance, high output, less power consumption cost per kilogram, and easy operation.

The machine can reduce less loss of the viscosity of the raw material.

Production Process

Conveying feeding →Pre Crystallization and drying → Conveying feeding → Metal Detector → Parallel twin screw extruder → Hydraulic screen changer → Plastic Strand die head → Water cooling tank → Plastic strand cutter → Storage silo

Techincal Parameters:

Model	SHJ20	SHJ30	SHJ50	SHJ65	SHJ72	SHJ92
Screw diameter(mm)	21.7	30	50.5	62.4	71.2	91
Rotate speed(mm)	600	400	400/600	500/600	400/500	400/500
Motor power (kw)	4	11	11/15	55/75	90/110	220/250
L/D	32-40	28-48	28-48	28-48	28-48	28-40
Output(kg)	2-10	5-30	40-80	100-300	300-600	600-1000
