PVC windows doors frame making machine

Get Latest Price

Payment Type:: L/C, T/T, D/P

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 50 Days

Transportation:: Ocean

Port:: Shanghai Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW
Transportation:	Ocean
Port:	Shanghai Port

Product Description

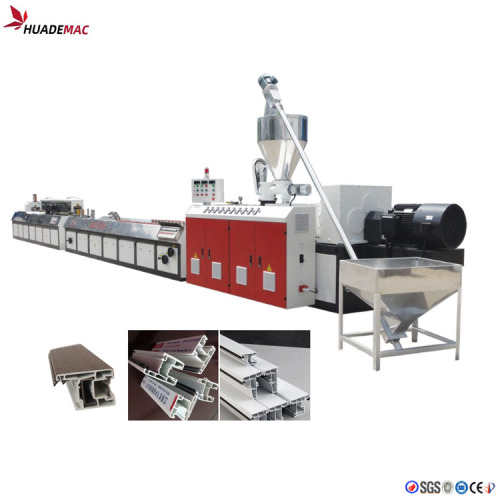

PVC windows doors frame making machine

Product Features

The conical double-screw plastic extruder has the characters such as force extruding, high quality, wide application, long usage time, low cutting speed, not-easy decomposition of material, good plasticized performance, powder forming directly, etc. This extruder is equipped with self temperature controlling and vacuum exhausting devices. It suits for the production of pipes, plates, special shaped materials, etc.

The working process of PVC door and window frame making machines:

Raw material → mixing → feeder→ double screw extruder → mold → vacuum calibration table → (hot stamping) → haul-off unit → cutting machine → stacker

The YF-200 PVC profile extrusion line is mainly used in the area of PVC plastics, WPC profile, decorative profile etc. The unit is composed of conical twin-screw extruder, vacuum shaping table, haul-off machine, cutter, turning-up flame. According to the different profile's section and moulds, you can choose different specifications of extruders to fit. The vacuum shaping table adopts special eddy current system to enhance cooling effect. The unique control skills of horizontal tilt and three dimension regulations embody perfectly for convenient operation. According to the different moulds and shaping tables, you can select corresponding sizing tables to meet the requirement of high output.The tractor uses the unique fluctuation technology and back pressure control with caterpillars around it. The cutter's move speed keeps with the tractor. It can automatically cut for fixed length and it also equipped with powder recycle device.The line can be used to produce PVC door and window profile,door pocket, pvc cable channel, pvc wiring duct, skirting board, louver blade etc.

PVC windows doors frame making machine photos

Twin screw extruder

Die head

Vacuum calibration table

Haul off machine

Cutter

Final products

Other products

Packaging

Zhangjiagang Huade Machinery
