Product Description

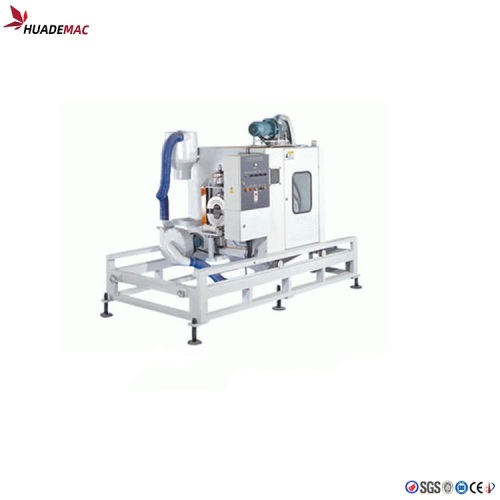

Plastic pipe cutting machine

Suitable pipe:PPR,HDPE,PVC,ABS,PERT,TPU,PB etc.

Pipe diameter 16mm-2000mm.

This machine is used to cut plastic pipe during pipe producing or offline working. Max cutting thickness coulde be 120mm, size from 16-2000mm pipes. For the small diameter pipes, we have high speed fly cutter. For the medium diameter pipes, we have planetary cutter and no dust cutter. For the big diameter pipes, we have no dust cutter and saw blade cutter.

It adopts parts with high performance and the precision and suitable structure and design.Without auxiliary parts, the cut pipe section is flat and smooth, which really realized the flash cutting of pipes of small caliber and solved the problem of hard cutting of high-speed production.

cutter

Main parameter

Name	XQG-250	XQG-315	XQG-400	XQG-630
Cutting pipe Dia. (mm)	60-250	110-315	160-400	400-630
Saw Spec. (mm)	110240T	125240T	125240T	1502.260T
Milling cutter Spec. (mm)	807525	907530	907535	Special
Central height (mm)	1000	1000	1000-1200	1200-1500
Product linear speed (M/min)	4	3	2.5	1.5
Cutting pipe thickness (mm)	15	20	25	30
Dimension (mm)	250011601540	300012601580	300013601540	300013601740
Weight (mm)	1200	1400	2000	2000

Plastic Pipe Cutting Machine Photos
Photobank 4

Planetary Cutter

The planetary cutting machine is composed of guide rail fixed frame, moving frame and rotary assembly, clamping mechanism, cutter feeding mechanism, cutting mechanism and dust collecting mechanism. The whole operation process is automatically controlled by PLC, and the whole cutting action can be realized in two states of "manual" and "automatic". The clamping mechanism adopts advanced clamping claw type clamping, which saves the trouble of changing the clamping sleeve in each state compared with the traditional clamping sleeve clamping.

Photobank 5

Knife-Lift Cutter

As an auxiliary equipment of plastic extruder production line, the knife-lift cutting machine is suitable for cutting profile products with width less than 250mm. The cutting machine includes a frame, on which all cutting tables are included. A transmission shaft mounting plate is hinged in the frame, and a saw disk mounting shaft is arranged on the transmission shaft mounting plate, which is fixed with the frame through a knife lifting cylinder; a motor mounting plate is hinged under the transmission shaft mounting plate, and a driving motor is installed on the motor mounting plate, The driving motor is connected with the mounting shaft of the saw plate, and the motor mounting plate is provided with an angle adjusting and locking mechanism through a transmission shaft mounting plate.

Photobank 6

No-Dust Cutter

No-dust cutting machine is mainly used in the fixed length cutting of HDPE, PP, PPR and other plastic pipes. Chip free cutting can keep the production environment clean and noise free. The incision is smooth and neat, and the appearance quality of the pipe is improved. Fast switching is suitable for different pipes and materials. It adopts imported PLC control, chip free circular cutting mode and special carbide blade. It is suitable for cutting small and medium-sized plastic pipes. The cutter section is flat and smooth, which can meet the requirements of high-speed cutting. It has the characteristics of long cutting life, low cutting noise and beautiful appearance.
