Automatic PE PVC pipe tube cutting machine

Feature of plastic pipe cutting machine

PE/PVC Planet Pipe Cutting Machine with total automatic control PLC system to running the machine co-work with PE/PVC Pipe production line.

PE/PVC Planet Pipe Cutting Machine can set pipe cutting length automaticly according to customer's length requirement.

PE/PVC Planet Pipe Cutting Machine besides the cutting function, it also has the function of chamfering. Chamfering work together with cutting at the same time.

Main parameter

Name	XQG-250	XQG-315	XQG-400	XQG-630
Cutting pipe Dia. (mm)	60-250	110-315	160-400	400-630
Saw Spec. (mm)	110*2*40T	125*2*40T	125*2*40T	150*2.2*60T
Milling cutter Spec. (mm)	80*75*25	90*75*30	90*75*35	Special
Central height (mm)	1000	1000	1000-1200	1200-1500
Product linear speed (M/min)	4	3	2.5	1.5
Cutting pipe thickness (mm)	15	20	25	30
Dimension (mm)	2500*1160*1540	3000*1260*1580	3000*1360*1540	3000*1360*1740
Weight (mm)	1200	1400	2000	2000

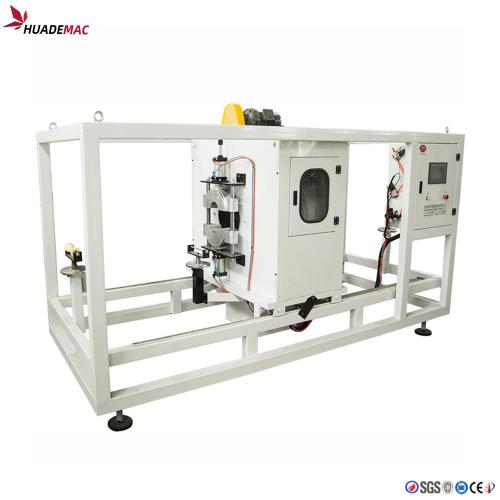

Plastic Pipe Cutting Machine Photos

The planetary cutting machine is composed of guide rail fixed frame, moving frame and rotary assembly, clamping mechanism, cutter feeding mechanism, cutting mechanism and dust collecting mechanism. The whole operation process is automatically controlled by PLC, and the whole cutting action can be realized in two states of "manual" and "automatic". The clamping mechanism adopts advanced clamping claw type clamping, which saves the trouble of changing the clamping sleeve in each state compared with the traditional clamping sleeve clamping.

Knife-Lift Cutter

As an auxiliary equipment of plastic extruder production line, the knife-lift cutting machine is suitable for cutting profile products with width less than 250mm. The cutting machine includes a frame, on which all cutting tables are included. A transmission shaft mounting plate is hinged in the frame, and a saw disk mounting shaft is arranged on the transmission shaft mounting plate, which is fixed with the frame through a knife lifting cylinder; a motor mounting plate is hinged under the transmission shaft mounting plate, and a driving motor is installed on the motor mounting plate, The driving motor is connected with the mounting shaft of the saw plate, and the motor mounting plate is provided with an angle adjusting and locking mechanism through a transmission shaft mounting plate.
