Product Description

PVC Braided Fiber Reinforced Hose Extrusion Line

Plastic Soft PVC Garden Fiber Braided Reinforced Pipe Hose Pipe/Tube Extrusion Making Machine

PVC Fiber Braided Reinforced Water Hose Tube Pipe Extrusion Machine/Transparent PVC Clear Hose Production Line

Introduction:

PVC fiber reinforced pipe production line is to produce the PVC fiber soft reinforced pipe , the pipe has 3 layers , out and inner layer is the soft plastic , the middle layer is the fiber net , it make the PVC fiber pipe more strong and has the good physical and chemical characters , apply for the pressure or corrosion gas/liquid conveying

Pvc Fiber Braided Reinforce Line

Features:

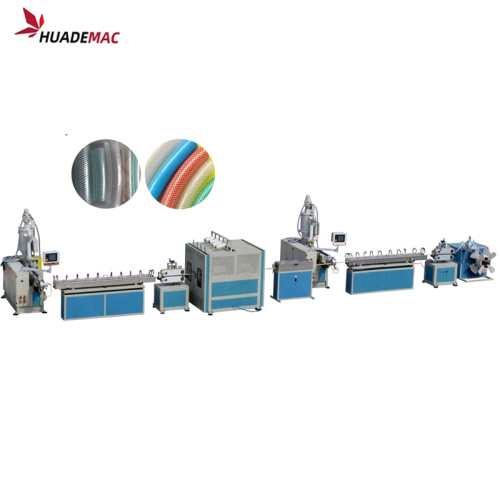

PVC Braided Fiber Reinforced Hose Extrusion Line is designed to produce PVC fiber reinforced hose and so on. It mainly consists of extruder, spray water tank, traction engine, knitting machine and reeling machine. PVC fiber braided hose production line has a good market in worldwide. We can supply PVC fiber braided hose production line with competitive price and high quality.

Main Technical Parameter:

Model	Diameter Range (mm)	Extruder	Output (kg/h)	installed Power( Kw)	Dimension LXWXH
HDF45	Ø6-Ø16	SJ45/30	20-40	35	15X3.5X2.5
HDF55	Ø 8-Ø25	SJ55/30	30-60	42	15X3.5X2.5
HDF65	Ø 12-Ø50	SJ65/30	40-80	50	18X3.5X3
HDF75	Ø 20-Ø50	SJ75/30	60-110	65	20X3.5X3
