PVC pipe making machine plastic extruder machine

PVC pipe making machine plastic extruder machine

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Port:: Shanghai Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW
Transportation:	Ocean
Port:	Shanghai Port

Product Description

PVC pipe making machine plastic extruder machine

Feeder	• To feed material into extruder(PVC manufacture machine)
Extruder	• World famous brand electrical component such as Siemens, Schneider, ABB etc •High torque gearbox with adopts NSK/SKF bearing; •Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.
Die head	• 40Cr material •Complete set include extrusion die head, Slotting & water ring type calibration sleeve • Apply to PVC single,dual,Four cavity extrusion.

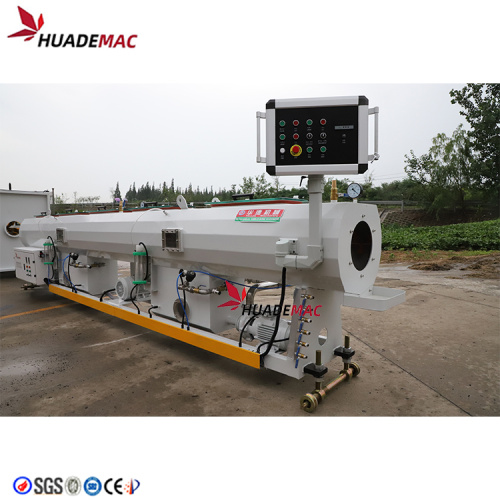

Vacuum calibration tank	• PVC pipe manufacture machine Include full set of vacuum and water pump • length 9000mm
Haul off	• Upper and lower caterpillar is driven separately by the frequency inverter
Planetary Saw Cutter	• Planetary saw cutter:enter knife by hydraulic drive • Cutting saw: steel alloy, specific for cutting U-PVC pipe. • Equipped cast aluminum compacted block for accurate cutting • Synchronous control
Belling machine	• Blow type: internal air blow and external mould compacted calibration, make U, R and Z type sockets; • Siemens PLC controlling:Automation& Remote Function: for centralized Controlling
Tipping table	•Stainless steel 304 as touching material •Discharge driving by air cylinder

PVC pipe making machine plastic extruder machine:

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator

→ vacuum forming machine → haul off machine → cutting machine → discharging rack
