PVC plumbing pipe making machine

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 50 Days

Transportation:: Ocean

Port:: SHANGHAI

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	250Kg
Supply Ability:	10SETS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Certificate:	CE
HS Code:	84778000
Transportation:	Ocean
Port:	SHANGHAI

Product Description

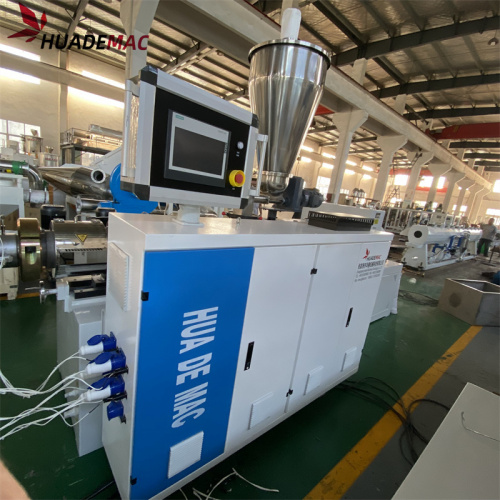

PVC plumbing pipe extrusion line

Diameter Range (mm): 63 75 90 110 140 160 200
Main Extruder Motor Power: 37kw
Total length: 38m
Capacity: 200-250kg/h
wall thickness:by request

63 200 Pvc 1

SJ65/132 Extruder

• Capacity: 200-250kgs/h

• Motor power: 37kW

• Material of screw & Barrel: 38CrMoAl & Bimetallic

Die-head

• 40Cr material

• Size :50 63 75 90 110 160 200mm

•Complete set include extrusion die head, Slotting & water ring type calibration sleeve

Vacuum Sizing Box

• 4kw water pump and 4kw vacuum pump

• length 6000mm

Haul-off Machine

• Upper and lower caterpillar is driven separately by the frequency inverter

•High friction fact and anti-wear out silicon rubber Pads

• Metering counter device

Planetary Cutter

• Planetary saw cutter enter knife by hydraulic drive

• Cutting saw: steel alloy, specific for cutting U-PVC pipe.

• Equipped cast aluminum compacted block for accurate cutting

• Synchronous control
