PVC Spiral Muffle Pipe Extrusion Line

PVC Spiral Muffle Pipe Extrusion Line

Diameter Range (mm): 75 90110 160 wall thickness by request

Main Extruder Motor Power: 37kw

Line Space Occupation: 32mx4mx3m

Capacity: 200-250kg/h

Introduction of complete UPVC hollow wall inner spiral-ribbing pipe production line :

The complete extrusion line including SJZ65/132 twin screw extruder,die head ,vacuum calibration tank.4 caterpillar haul off,planetary cutter,film wrapped machine,pipe socket machine and so on.

Features:

High automation

Stable running

Lower maintenance

High quality product

Main Technical Datas and images for mono layer  PVC pipe production line :

Screw Feeder

To feed material into extruder

SJZ65/132 conical twin screw Extruder

• Capacity: 200-250kgs/h

• Motor power: 37kW

• Material of screw & Barrel: 38CrMoAl & Bimetallic

• World famous brand electrical component such as Siemens, Schneider, ABB etc

•High torque gearbox with adopts NSK/SKF bearing;

• Siemens  motor achieved global after service;

• Bimetallic screw and barrel;

• PID automatic temperature controller .

40Cr material
Size : 75 90 110 160 mm
Complete set include extrusion die head, Slotting & water ring type calibration sleeve

Materials: 40Cr Steel

Structure: Spiral or Basket

Single cavity  design

single layer design

Vacuum Calibration tank

Tank materials: 4mm 304 S. S.Materials

Length 6000mm

High pressure and stable water jet.

Pressure protection design

4 Caterpillar haul-off

Upper and lower caterpillar is driven separately by the frequency inverter

High friction fact and anti-wear out silicon rubber Pads

Metering counter device

Planetary cutter

• Planetary saw cutter enter knife by hydraulic drive

• Cutting saw: steel alloy, specific for cutting U-PVC pipe.

• Equipped cast aluminum compacted block for accurate cutting

• Synchronous control

• Chamfering function for optional

Stacking

Stainless steel 304 as touching material

Discharge driving by air cylinder

Final product show :

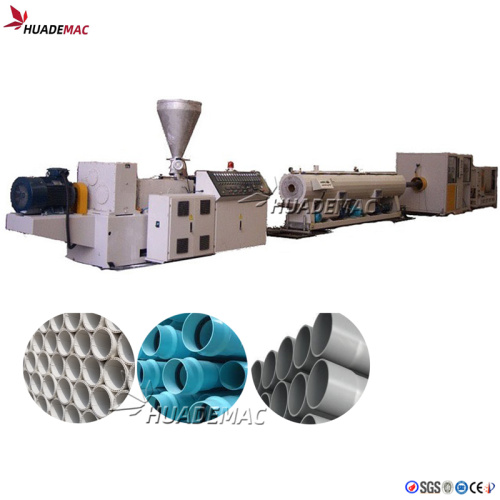

Complete PVC Spiral Muffle Pipe Extrusion Line :
