Product Description

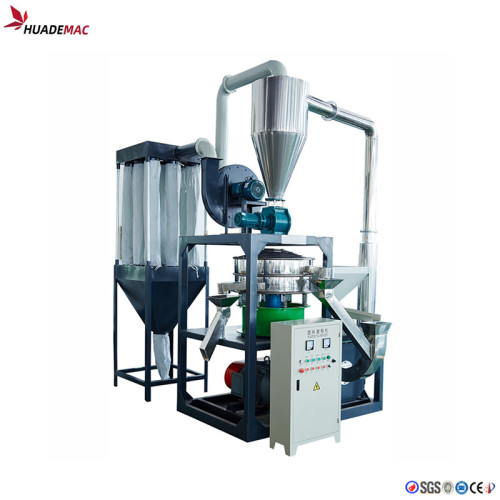

High Speed Turbine Milling Machine

Features:

High-speed mill is used for crocus in the industries such as plastic,mine,chemical,metallurgy.
Especially it is suitable for crous of PVE,PE reclaimed material.It is proved that the performance of produce is as good as thenew material, if 20%-30% of the raw material if the processed powder.so it is the best unit for plastic processing factory to solute the wastes and save the costs.

Main Technical Parameters：

Item	400	400B	500	500B
Pulverizing Room diameter (mm)	φ400		φ500
Disc quantity	1set (solid cutter)
Blade quantity (pc)	20		24
Main shaft rotating speed (r/min)	3700		3400
Main motor power (KW)	30	37	45	55
Feeding power (KW)	0.75
Blower power (KW)	0.75
Oil pump power (KW)	0.37
Starting method of main motor	Start relief
Feeding method	Frequency inverter
Capacity (kg/h)	200	250	350	400
Overall size (mm)	1900x1300x2000		2000x1900x2300
Weight (kg)	1000	1100	1800	1900
Fineness (mesh)	20-80
