3 or 4 layer UPVC water pipe machine

PVC 3 layer 2 colour pipe extrusion line     PVC 3 layer 2 colour pipe making machine

Diameter Range (mm): 160 180 200 225 250 315mm wall thickness by request

Main Extruder Motor Power: 55kw

Line Space Occupation: 35mx4mx3m

Capacity: 250-350kg/h

Introduction of complete extrusion line :

The complete extrusion line including SJZ80/156,SJZ65/132conical twin screw extruder,die head 160-315mm,SJ25/25 color strip extruder,vacuum calibration tank.4 caterpillar haul off,planetary cutter,film wrapped machine,pipe socket machine and so on.

Features:

High automation

Stable running

Lower maintenance

High quality product

Main Technical Datas and images for 3 layer PVC pipe production line :

Screw Feeder

To feed material into extruder

SJZ65/132 conical twin screw Extruder

• Capacity: 200-250kgs/h

• Motor power: 37kW

• Material of screw & Barrel: 38CrMoAl & Bimetallic

• World famous brand electrical component such as Siemens, Schneider, ABB etc

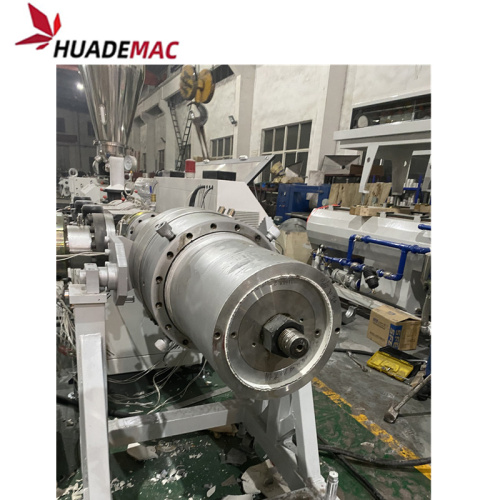

40Cr material
Size :160-180-200-225-250-315mm
Complete set include extrusion die head, Slotting & water ring type calibration sleeve

Vacuum Calibration tank

Tank materials: 4mm 304 S. S.Materials

Length 6000mm

High pressure and stable water jet.

4 Caterpillar haul-off

Upper and lower caterpillar is driven separately by the frequency inverter

High friction fact and anti-wear out silicon rubber Pads

Metering counter device

Planetary cutter

• Planetary saw cutter enter knife by hydraulic drive

• Cutting saw: steel alloy, specific for cutting U-PVC pipe.

• Equipped cast aluminum compacted block for accurate cutting

• Synchronous control

• Chamfering function for optional

Stacking

Stainless steel 304 as touching material

Discharge driving by air cylinder
