Basic Info
Basic Info
Place of Origin: china
Productivity: 200-250kg/h
Supply Ability: 10set per month
Payment Type: L/C,T/T
Incoterm: FOB,CFR
Certificate: CE
HS Code: 84778000
Transportation: Ocean
Port: Shanghai
Product Description
Product Description

Product Description

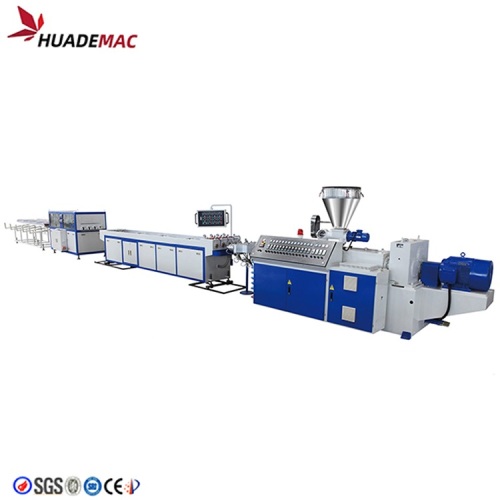

PVC Four-Strands Pipe Extrusion Line
 PVC Multi Strands Pipe Extrusion Line with advanced technology which is mainly used in making PVC water pipe and PVC cables, it has dual strands type and four strands type, which allows to produce two pipes or four pipes together at the same time, greatly improved the output, welcomed by customers all over the world.


SPECIFICATIONS FOR PVC Four-Strands Pipe Extrusion Line

Model

Pipe spec(mm)

Extruder

 Max.output

(kg/h)

Total motor power

(KW)

32-PVC 4-Strands

Φ16-Φ32

SZ65/132

250-300

96

50-PVC 2-Strands

Φ16-Φ50

SZ80/156

350-450

136

110-PVC 2Strands

Φ50-Φ110

SZ80/156

350-400

136

4 Pipe Extruder 08


Application of PVC,UPVC Wall Pipe extrusion production line / UPVC pipe making machine:

Applied for manufacture of caliber PVC,UPVC water supply and drain pipes,electric conduit pipe, etc



Working flow of PVC,UPVC Wall Pipe extrusion production line / UPVC pipe making machine

EXTRUSION PROCESS


conduit pipe 0

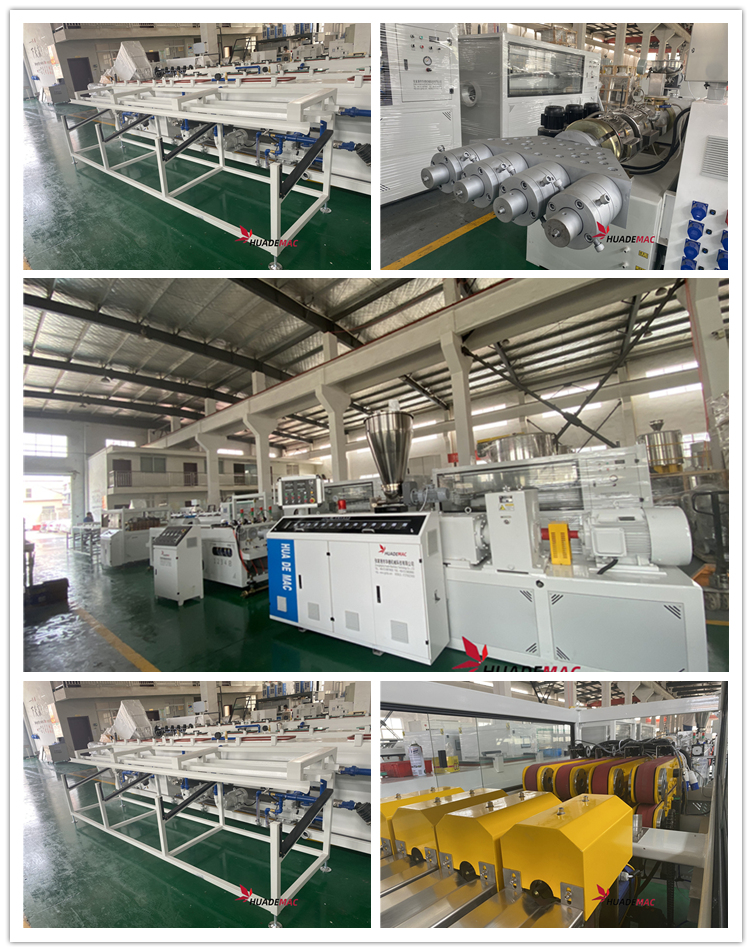

Details Images of 4 strand extrusion line

4 Pipe Extruder C

Bush Pin Cc 750


Vacuum calibration tank is used to shape and cool pipe, so as to reach standard pipe size.

Length: 6000mm

Material: 1.5mm stainless steel SUS304,

Vacuum pump 1X4kw

Horizontally adjusting distance is 800mm, and the motor is 0.75kw cycloid pin reducer

Up and down, left and right movement adjusted by guide screw


4 Caterpillar Haul off  and dust free cutter unit provides sufficient traction force to pull pipe stably.


Useful Haul-off length:800mm

Haul-off motor power:850wX8pcs servo motor

Haul-off speed:1-15m/min

Equipped with coder to give fixed length signal

Cutting motor: AC 0.55kwX4pcs


Stacking unit

Stainless steel 304 as touching material

Discharge driving by air cylinder


Pvc Pipe Auxiliary


Product packaging of PVC 4 strand production line
