PVC electrical conduit pipe production line

PVC 4 output pipe making machine description

Φ16-32mm PVC pipe extrusion line
PVC pipe manufacture machine can be used in the area of cable pavement pipes production. Whole line consists of conical twin screw extruder, four cavity mould, vacuum calibration cooling tank, haul-off, cutter, tripping table /belling machine,etc. And PVC pipe manufacture machine can be equipped with PLC control, ink-jet/laser printer, crusher, shredder, Pulverizer ,water chiller, air compressor etc.

Pvc 4 Cavity

Process Flow:

Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical twin screw extruder → Mould → Vacuum Calibration Cooling Tank → Haul-off and cutting unit → Belling machine/ Stacker → Final Product Inspecting & Packing

CHARACTERISTICS and APPLICATIONS

Four station haul-off：up-down two caterpillar tracking

Drawing speed：1-10m/min

Drawing forth：6000N

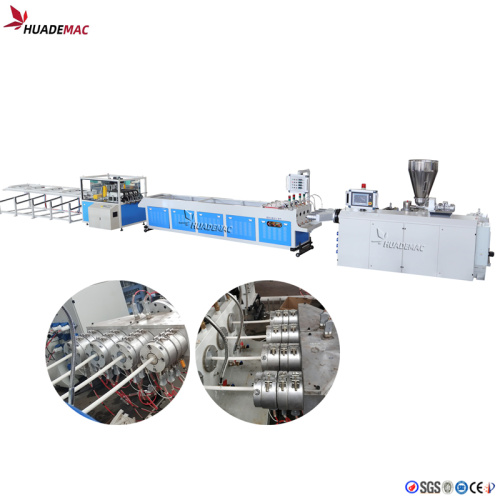

PVC electrical conduit pipe production line photos

Extruder

Extruder is one of the types of plastic machinery, originated in the 18th century.
According to the direction of material flow and the angle of screw center line, the extruder head can be divided into right angle head and oblique angle head.
Screw extruder relies on the pressure and shear force produced by screw rotation, which can make the material fully plasticized and evenly mixed, and then molded by die.

Die
