16-32mm 4 out PVC pipe making machine

16-32mm 4 out PVC pipe making machine

The production line with high efficiency single screw extruder and through the spiral or basket type mould by multi - Crawler traction machine vacuum sizing cooling and as is known to all, large-diameter PE pipe are tractive pipe variety, Shuanglin specially developed rapid traction switching device, so as to solve the the problem. By the appropriate transformation part of the unit, you can achieve a two-layer or multi-layer co extruded, replacing the extruded layer material or add special materials according to the requirements of the use, such as flame retardant, antistatic, corrosion resistance, nano antibacterial materials, greatly improving the pipe use, reduce raw material consumption, thereby reducing the cost of pipes.

Application

Four cavity PVC pipe making machine

Extruder

According to the direction of material flow and the angle of screw center line, the extruder head can be divided into right angle head and oblique angle head.
Screw extruder relies on the pressure and shear force produced by screw rotation, which can make the material fully plasticized and evenly mixed, and then molded by die.

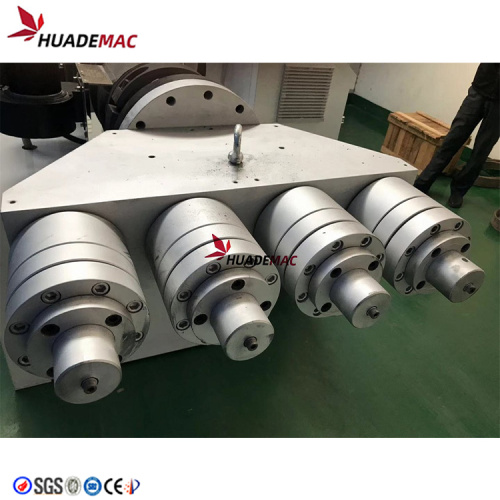

Die-head

Vacuum Sizing Box

Tank materials: 304 S. S.Materials

Water temperature and level controlling technology;

Haul-off and Cutter Machine

Stacker

Stainless steel 304 as touching material

Discharge driving by air cylinder

Final Products

Exhibition
