Upvc conduit pipe extruder

Plastic 20-63mm PVC two cavity conduit electric

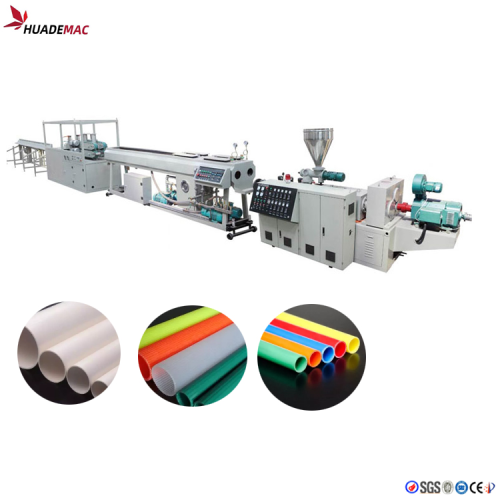

The 20-63mm PVC pipe production line(two cavity) designed by Jiangsu HUADE Machinery Co., Ltd mainly includes: powder feeder, conical twin screw extruder, mold (two cavity), vacuum calibration tank, hauling machine, cutting machine and stacker. The PVC pipe produced by this production line is generally used for water supply, drainage pipe and wire threading pipe, etc.

This production line is suitable for high speed extrusion of PVC, UPVC and other raw materials. Because this production line using a direct extrusion process, man-machine interface control system, it has a high degree of automation, reliable quality, stable operation, welcomed by domestic and foreign customers and so on.

Diameter Range (mm): 20 25 32 40 50

Main Extruder Motor Power: 55kw

Line Space Occupation: 26mx4mx3m

Capacity: 200-350kg/h

wall thickness:by request

                        Plastic two cavity pvc pipe production line photos

Extruder ↓

Used for all kinds of PVC pipes for agricultural water supply and drainage ,

building water supply and drainage , cable laying , etc.

Die↓

Used for pipe forming .Good mobility

Alternatively temperature control

Spider type and distributing spider type for choice

Vacuum Forming Machine↓

Used for pipe forming and spray cooing .

 Stainless steel tank and spray pipelines

Water level control device
Water temperature adjusting system
