Metric Retaining washers for shafts

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal

Incoterm:: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Delivery Time:: 20 Days

Transportation:: Ocean, Land, Air

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	KUNSHAN JIANGSU CHINA
Supply Ability:	50Ton/MONTH
Payment Type:	L/C,T/T,D/P,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	ISO CE SGS
HS Code:	731815
Transportation:	Ocean,Land,Air
Port:	Shanghai,Ningbo

Product Description

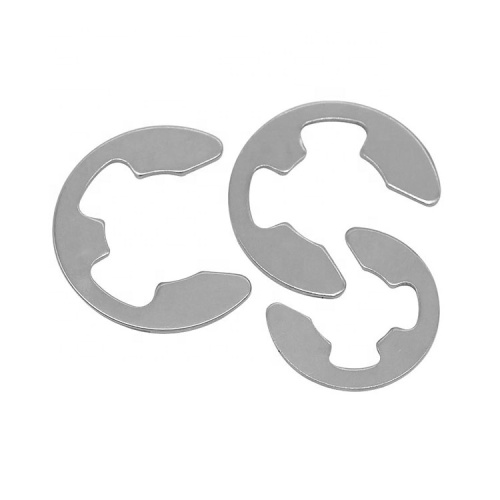

DIN6799 18-8 E Shape Lock Washer M5 m8 Stainless Steel A2 A4 Retaining Washers for Shafts

Thread specification d		0.8	1.2	1.5	1.9	2.3	3.2	4	5	6
h	Max	0.22	0.32	0.42	0.52	0.62	0.62	0.72	0.72	0.72
h	Min	0.18	0.28	0.38	0.48	0.58	0.58	0.68	0.68	0.68
n	Max	0.62	1.05	1.32	1.65	1.98	2.74	3.388	4.158	5.308
n	Min	0.54	0.97	1.24	1.57	1.9	2.66	3.292	4.062	5.212
dc	Max	2.25	3.25	4.25	4.8	6.3	7.3	9.3	11.3	12.3
Thousand pieces (steel) ≈ kg		0.003	0.009	0.021	0.04	0.069	0.088	0.158	0.236	0.255

Thread specification d		7	8	9	10	12	15	19	24	30
h	Max	0.92	1.03	1.13	1.23	1.33	1.53	1.78	2.03	2.53
h	Min	0.88	0.97	1.07	1.17	1.27	1.47	1.72	1.97	2.47
n	Max	5.888	6.578	7.688	8.378	10.52	12.68	15.99	21.964	25.884
n	Min	5.792	6.462	7.572	8.262	10.38	12.54	15.85	21.796	25.716
dc	Max	14.3	16.3	18.8	20.4	23.4	29.4	37.6	44.6	52.6
Thousand pieces (steel) ≈ kg		0.474	0.66	1.09	1.25	1.63	3.37	6.42	8.55	13.5

Main Products

E Rings

Certifications

E Rings

Testing Laboratory

E Rings

We have Magnetic Powder Detector, Material Testing Machine, Metallographic Microscope, such testing instruments, guarantee product high quality and beautiful appearance.The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing.

Production Process

E Rings

First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.

The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.
